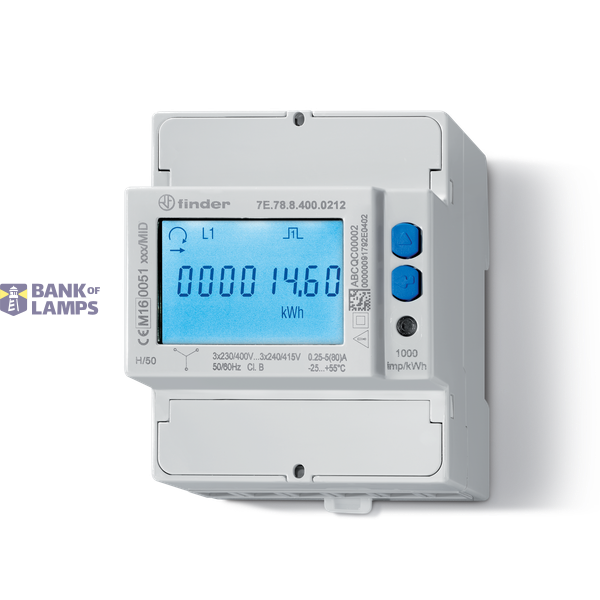

ENERGY METER 2 TARIFFS, ELECTRONIC
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | ENERGY METER 2 TARIFFS, ELECTRONIC |
| Brand | FINDER |
| ETIM | EC001506 |
| Frequency | 50-60 Hz |
| Max. current (Imax) | 80 A |
| Width in number of modular spacings | 4 |
| Degree of protection (IP) | IP50 |
| Pulse rate | 100 Imp/kWh (kvarh) |
| Pole type | Three conductor/four conductor |
| Nominal voltage (Un) N-L | 184-276 V |
| Nominal current (In) | 5 A |
Packing details
| Packing level 1 | 8012823412733 |
| Packing level 2 | 8012823412634 |
Other Technical data
| Model | Direct measurement |
| Suitable for | Purchase/supply |
| Type of indication | Digital |
| Number of positions total (counter) | 8 |
| Type of meter | Electronic |
| Type of interface | M-bus (wired) |
| Energy type | Effective power and blind power |
| Tariff type | Two-tariff |
| Tariff control | External |
| Escapement mechanism | Yes |
| Calibrated | Yes |
| Approval | Measuring Instruments Directive |
| Pulse output | Electrical |
| Pulse type | S0 |
| Accuracy class | B |
| With lock code | No |
| Nominal voltage (Un) L-L | 320-498 V |
Description
Energy meters Model: Direct measurement Suitable for: Purchase/supply Type of indication: Digital Frequency: from 50 to 60 Hz. Max. current (Imax): 80 A. Width in number of modular spacings: 4 Number of positions total (counter): 8 Type of meter: Electronic Protection category: IP50 Type of interface: M-bus Energy type: Effective power and blind power Tariff type: Two-tariff Tariff control: External Escapement mechanism: yes Calibrated: yes Approval: Measuring Instruments Directive Pulse output: Electrical Pulse type: S0 Pulse rate: 100 Imp/kWh (kvarh). Accuracy class: B Pole type: Three conductor/four conductor With lock code: no Nominal voltage (Un) N-L: from 184 to 276 V. Nominal current (In): 5 A. Accessories: Tamper-proof cover with lead seal facility availabes Note: -
