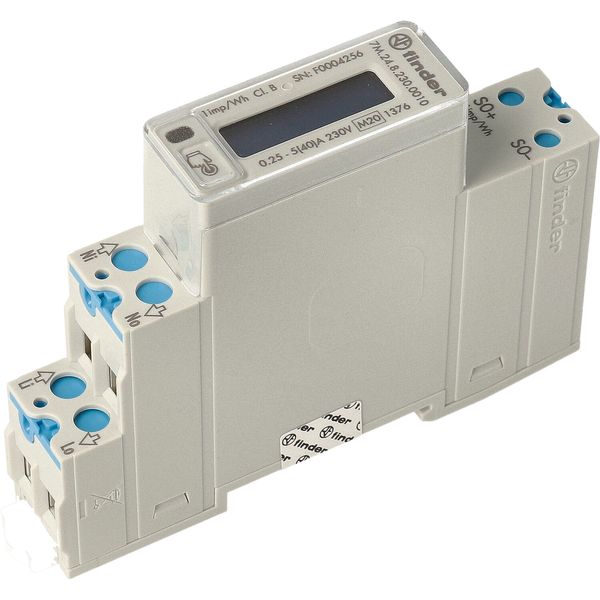

Energy meter 17.5mm, 1 ph.LCDisplay/40A/230VAC/S0/MID (7M.24.8.230.0010)
Order only
Price (excl. VAT):
79,51 €
per pcs
EAN: 8012823426723
MPN: 7M2482300010
Package: 1
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Energy meter 17.5mm, 1 ph.LCDisplay/40A/230VAC/S0/MID (7M.24.8.230.0010) |
| Brand | FINDER |
| Categories |
Electric meters
|
| Harmonized System Code | 9028 3019 00 |
| Width | 17.5 mm |
| Height | 90.4 mm |
| Depth | 63.9 mm |
| Frequency | 50-60 Hz |
| Max. current (Imax) | 40 A |
| Width in number of modular spacings | 1 |
| Degree of protection (IP) | IP50 |
| Pulse rate | 1000 Imp/kWh (kvarh) |
| Pole type | Single phase |
| Nominal voltage (Un) N-L | 184-265 V |
| Nominal current (In) | 5 A |
Packing details
| Packing level 1 | 8012823429182 |
| Packing level 2 | 8012823426723 |
Other Technical data
| Model | Direct measurement |
| Suitable for | Purchase/supply |
| Type of indication | Digital |
| Number of positions total (counter) | 7 |
| Type of meter | Electronic |
| Type of interface | None |
| Energy type | Effective power and blind power |
| Tariff type | One-tariff |
| Escapement mechanism | Yes |
| Calibrated | Yes |
| Approval | Measuring Instruments Directive |
| Pulse output | Electrical |
| Pulse type | S0 |
| Accuracy class | B |
| With lock code | Yes |
Downloads
Description
Energy meters Model: Direct measurement Suitable for: Purchase/supply Type of indication: Digital Frequency: from 50 to 60 Hz. Max. current (Imax): 40 A. Width in number of modular spacings: 1 Number of positions total (counter): 7 Type of meter: Electronic Protection category: IP50 Type of interface: None Energy type: Effective power and blind power Tariff type: One-tariff Escapement mechanism: yes Calibrated: yes Approval: Measuring Instruments Directive Pulse output: Electrical Pulse type: S0 Pulse rate: 1000 Imp/kWh (kvarh). Accuracy class: B Pole type: Single phase With lock code: yes Nominal voltage (Un) N-L: from 184 to 265 V. Nominal current (In): 5 A.
