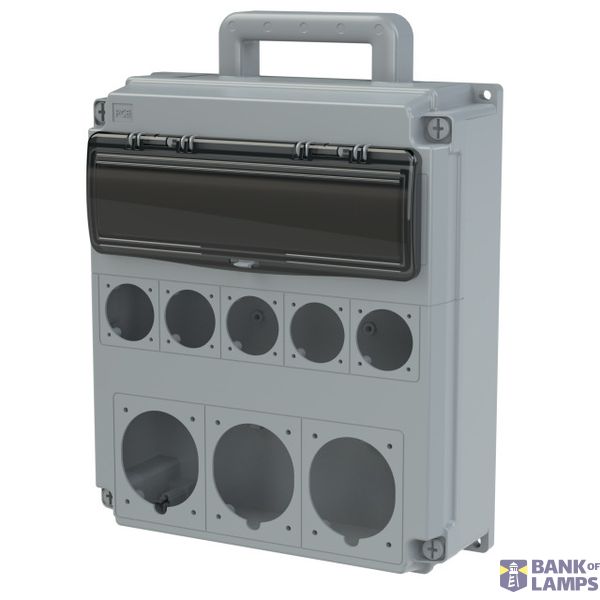

Empty enclosure OPOLE 14TE 5xSSD 3xCEE IP54 (with handle)

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Empty enclosure OPOLE 14TE 5xSSD 3xCEE IP54 (with handle)
Brand	PCE
Harmonized System Code	8538 1000 00
ETIM	EC000058
Impact strength	IK08
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399525872

Other Technical data

Mounting method	Other
Colour	Grey
Width	300 mm
Height	405 mm
Depth	128 mm
RAL-number	7046
Number of rows	1
Type of cover	Cover
Housing material	Plastic
Suitable for outdoor use	Yes
Number of modules	14
Cover model	With notch
Number of openings for flange plates	8

Downloads

Product data sheet Others

Description

Empty Enclosure for Low-Voltage Switchgear Assemblies series OPOLE
Material: ABS, color: grey (similar to RAL 7046)
Dimensions (HxWxD): 405x300x128 (with handle)
Transparent hinged window with 14 module units
Version with 3 cutouts for flange 80x97mm and 5 cutouts for flange 50x50mm
Incl. accessories (DIN rail, hinge straps, screws)
Protection degree: IP54
Acc. to IEC/EN 62208
