Empty enclosure FLEX 6-E IP66/67
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Empty enclosure FLEX 6-E IP66/67 |
| Brand | PCE |
| Harmonized System Code | 8538 1000 00 |
| ETIM | EC000058 |
| Impact strength | IK10 |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 9003399522666 |
Other Technical data
| Mounting method | Surface mounted (plaster) |
| Protection class | II |
| Colour | Grey |
| Width | 160 mm |
| Height | 471 mm |
| Depth | 132 mm |
| RAL-number | 7035 |
| Number of rows | 1 |
| Type of cover | Cover |
| Number of conduit inlets | 8 |
| Inner depth | 72 mm |
| Housing material | Plastic |
| Suitable for outdoor use | Yes |
| Number of modules | 6 |
| Number of openings for flange plates | 0 |
Downloads
Description

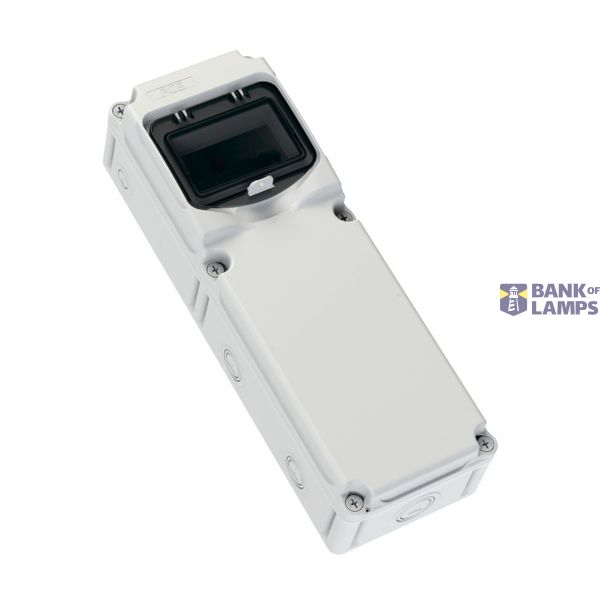

Empty Enclosure for Low-Voltage Switchgear Assemblies FLEX 6-E
Material: ABS, color: grey (similar to RAL 7035)
Dimensions (HxBxT): 471x160x132mm
Lockabel, transparent hinged window with 6 units
Closed (blind) version (no openings for sockets)
Incl. accessories (DIN rail mounted, hinge straps, screws, screw covers)
Protection degree: IP66/IP67
Acc. to IEC/EN 62208
Material: ABS, color: grey (similar to RAL 7035)
Dimensions (HxBxT): 471x160x132mm
Lockabel, transparent hinged window with 6 units
Closed (blind) version (no openings for sockets)
Incl. accessories (DIN rail mounted, hinge straps, screws, screw covers)
Protection degree: IP66/IP67
Acc. to IEC/EN 62208
