Empty enclosure FLEX 16-S6 IP66/67
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Empty enclosure FLEX 16-S6 IP66/67 |
| Brand | PCE |
| Harmonized System Code | 8538 1000 00 |
| ETIM | EC000058 |
| Impact strength | IK10 |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 9003399522710 |
Other Technical data
| Mounting method | Surface mounted (plaster) |
| Protection class | II |
| Colour | Grey |
| Width | 330 mm |
| Height | 471 mm |
| Depth | 158 mm |
| RAL-number | 7035 |
| Number of rows | 1 |
| Type of cover | Cover |
| Number of conduit inlets | 18 |
| Inner depth | 92 mm |
| Housing material | Plastic |
| Suitable for outdoor use | Yes |
| Number of modules | 16 |
| Number of openings for flange plates | 6 |
Downloads
Description

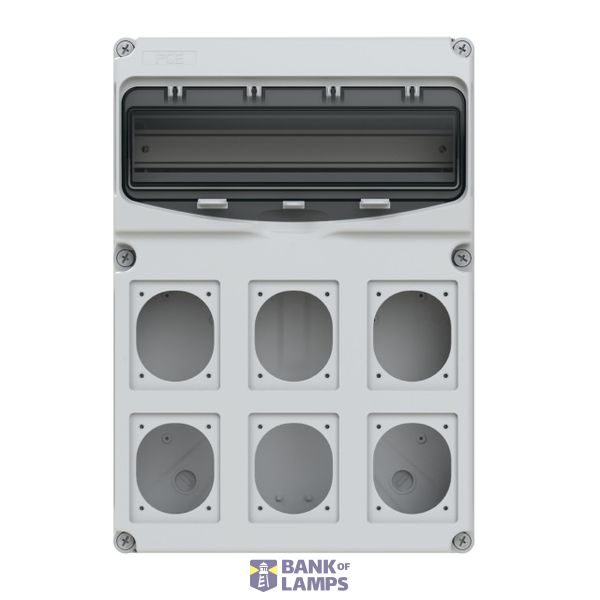

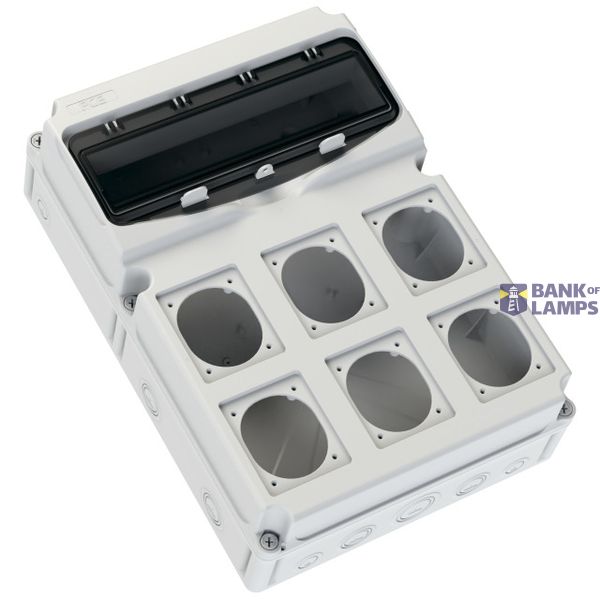

Empty Enclosure for Low-Voltage Switchgear Assemblies FLEX 16-S6
Material: ABS, color: grey (similar to RAL 7035)
Dimensions (HxBxT): 471x330x158mm
Lockabel, transparent hinged window with 16 units
Cutout for 6 flange mounting possibilites (80x97mm)
Incl. accessories (DIN rail mounted, 1x blind flange with seal, hinge straps, screws, screw covers)
Protection degree: IP66/IP67
Acc. to IEC/EN 62208
Material: ABS, color: grey (similar to RAL 7035)
Dimensions (HxBxT): 471x330x158mm
Lockabel, transparent hinged window with 16 units
Cutout for 6 flange mounting possibilites (80x97mm)
Incl. accessories (DIN rail mounted, 1x blind flange with seal, hinge straps, screws, screw covers)
Protection degree: IP66/IP67
Acc. to IEC/EN 62208
