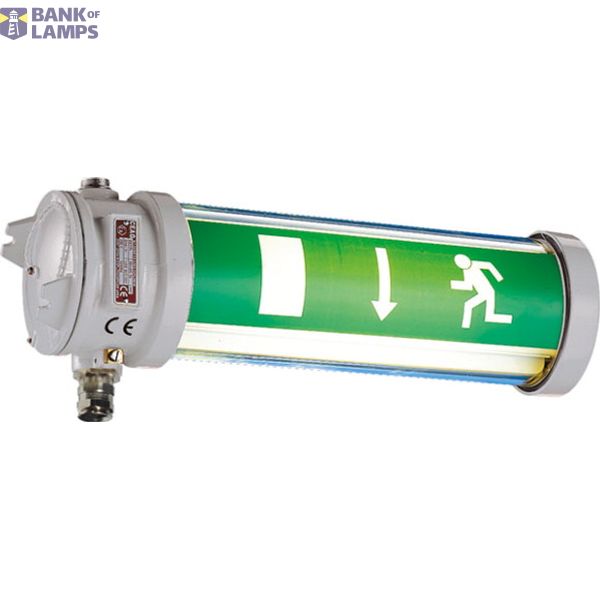

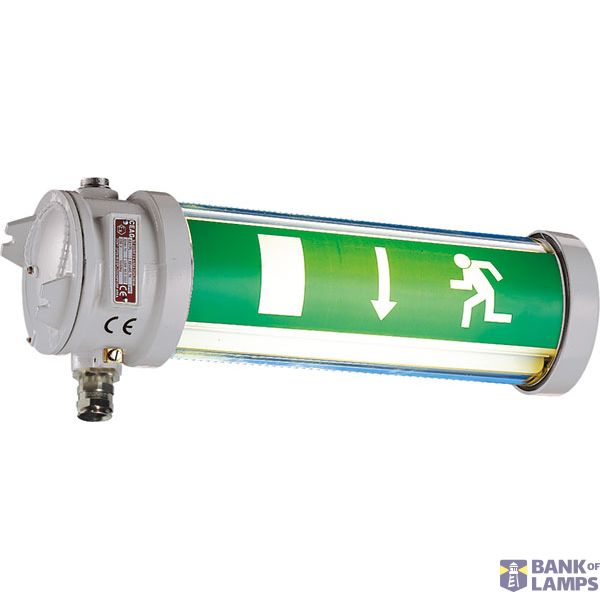

EMERGENCY LUM.ExdIIC 11W 127V EE11PL
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | EMERGENCY LUM.ExdIIC 11W 127V EE11PL |
| Brand | EATON |
| ETIM | EC000981 |
| Width | 356 mm |
| Colour rendering index CRI | 70-79 |
| Length | 356 mm |
| Height/depth | 76 mm |
| Lamp type | Other |
| Impact strength | IK10 |
| Nominal voltage | 110-277 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 3000-6500 K |
| Max. system power | 6 W |
| Rated luminous flux according to IEC 62722-2-1 | 185 lm |
Packing details
| Packing level 1 | 8435156913140 |
Other Technical data
| Mounting method | Surface mounting |
| Protection class | I |
| Conductor cross section | 2.5 mm² |
| Connection type | Other |
| Voltage type | AC/DC |
| Power supply system | Central |
| Type of control gear | Electronic transformer |
| Suitable for labelling type | Other |
| Type of indicator | Single-sided |
| Number of poles | 3 |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| For Ex-zone gas | 2 |
| With light source | Yes |
| Monitoring equipment | None |
| For Ex-Zone dust | 22 |
| Luminous flux at emergency operation | 185 lm |
| Recognition distance | 25 m |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 60 h |
| Energy efficiency class of the built-in lamp | Other |
| Energy efficiency class of the provided exchangeable built-in lamp | E |
| Highest energy efficiency class of the exchangeable lamp | E |
| Lowest energy efficiency class of the exchangeable lamp | E |
| Exchangeable control gear | Yes |
| Power factor | 0.95 |
Description
Ex-d self-contained escape sign luminaires for Zone 1/21EE 11 PL 108 - 127 V; 1.5 h; 1x 3/4'' metal thread with threaded plug; 1x 3/4'' NPT metal thread with dust cap
