Emergency lighting units

Order only

EAN: 9006210758312

MPN: 89800803

Package: 1

Price (excl. VAT)

61,90 €

per unit

MOQ: 1

EDT to our warehouse: 2-4 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	Emergency lighting units
Brand	Tridonic
Categories	Emergency units for luminaires
ETIM	EC002678
Power	1.5 W
Nominal voltage	220-240 V
Degree of protection (IP)	IP20

Packing details

Packing level 1

9006210758312, 9006210758312, 9006210758312

Other Technical data

Width	30 mm
Height	21 mm
Length	127 mm
Monitoring equipment	Other

Description

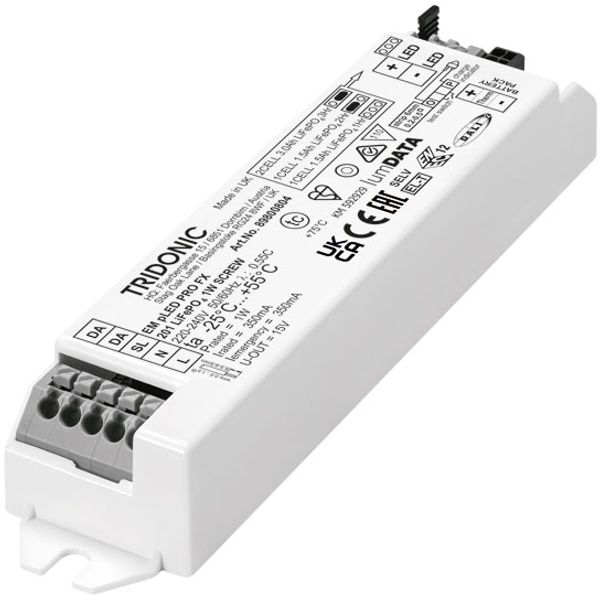

Emergency lighting LED driver with DALI interface and selftest function ¦ For self-contained emergency lighting ¦ SELV for output voltage < 60 V DC ¦ Low profile casing (21 x 30 mm cross-section) ¦ EM = Emergency ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Mains and emergency operation ¦ DALI switchable in mains operation (on/off); the switched phase SL must be switched on ¦ DALI interface for controlled testing and monitoring ¦ Constant current mode ¦ With either screw or clip fastening (clip-fix) ¦ 1, 2 or 3 h rated duration ¦ Selectable operating time (jumper) ¦ Two-colour status display LED ¦ SELV classified (outputs powerLED, battery, status LED, test switch) ¦ Very low energy consumption from the battery after activation of the deep discharge protection ¦ Intelligent charge system ¦ Deep discharge protection ¦ Temperature protection ¦ Reverse polarity protection ¦ LiFePO4 batteries with Tridonic LiFeGuard ¦ Overcharge-/Overdischarge protection ¦ Ensures safety in use ¦ Up to 8 year design life ¦ 4 years guarantee
