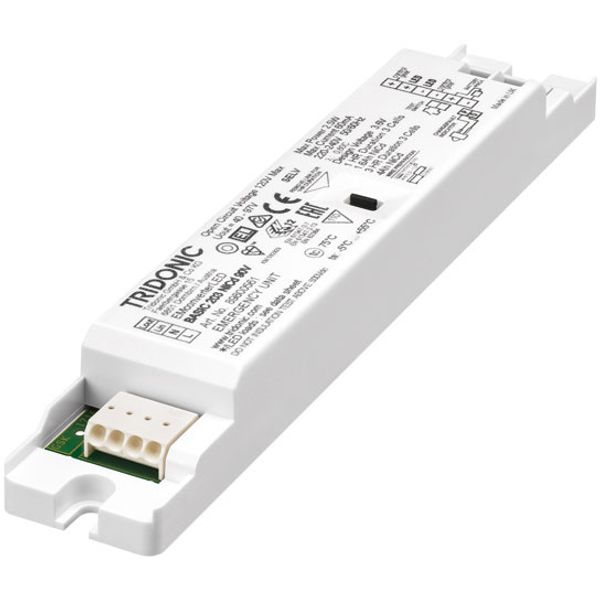

Emergency lighting units

Name: Emergency lighting units
Brand: Tridonic
Price: 38.010 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

38,01 €

This price is valid until next price list or while stock lasts

EAN: 9006210651354

MPN: 89800562

Package: 1

Estimate delivery time to our warehouse: 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Emergency lighting units
Brand	Tridonic
Categories	Emergency units for luminaires
Width	30 mm
Height	21 mm
Power	3.5 W
Length	179 mm
Nominal voltage	220-240 V
Degree of protection (IP)	IP20
Monitoring equipment	Test button
Nominal operation time	1-3 h

Packing details

Packing level 1

9006210651354, 9006210651354

Description

Emergency lighting LED driver for manual testing ¦ For self-contained emergency lighting ¦ For LED modules with a forward voltage of 40 – 97 V ¦ SELV for output voltage < 120 V DC ¦ Low profile casing (21 x 30 mm cross-section) ¦ For luminaire installation ¦ EM = Emergency ¦ Nominal lifetime up to 100,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Non maintained operation ¦ 1 or 3 h rated duration ¦ Operating time selectable with plug (duration link) ¦ Compatible with all dimmable and non-dimmable constant current LED driver (see data sheet, LED driver compatibility) ¦ 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED driver ¦ Automatic shutdown of output if LED load is out of range ¦ Constant power output ¦ Maximum light output for all LED modules ¦ Electronic charge system ¦ Deep discharge protection ¦ Short-circuit-proof battery connection ¦ Polarity reversal protection for battery ¦ High-temperature cells ¦ NiCd or NiMH batteries ¦ D, Cs or LA cells ¦ 4 year design life ¦ 1 year guarantee (conditions at www.tridonic.com) ¦ For battery compatibility refer to data sheet
