RZB

Emergency lighting module L 177 B 30 H 22, Automatic self-test 4.8 V /

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Emergency lighting module L 177 B 30 H 22, Automatic self-test 4.8 V /
Brand RZB
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
ETIM EC000471
Protection class I
Power 3 W
Lamp type LED
Wiring system Continuous circuit/emergency circuit
Nominal voltage 220-240 V
With remote switch connection No
Monitoring equipment Automatic self test
Nominal operation time 3 h

Packing details

Packing level 1 4051859087816, 4051859087816

Downloads

Product data sheet Mounting instruction

Description

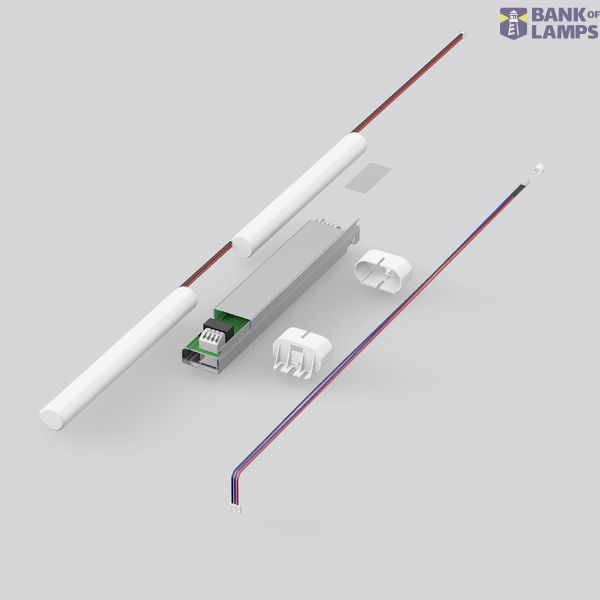

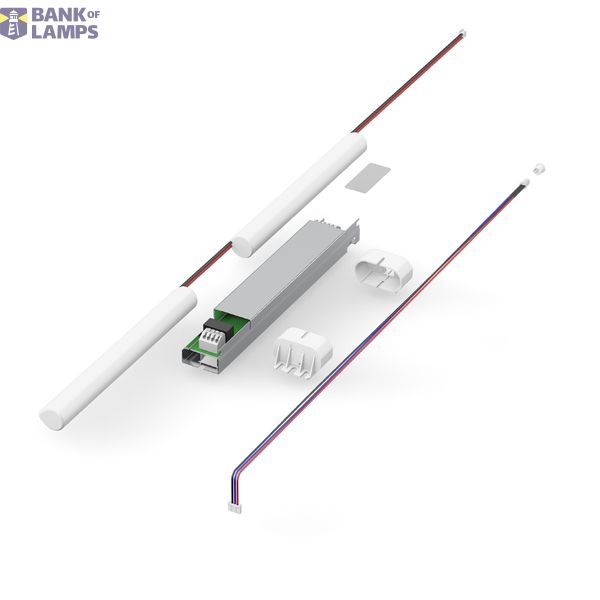

Emergency light kit for LED. Consisting of emergency light module in metal housing and battery. With status display. Operation in maintained and non-maintained modes possible. Display of the test results over multicolored status LED. Can be used up to 2 meters from the luminaire. Suitable for use according to VDE 0108-100 / EN 50172.
