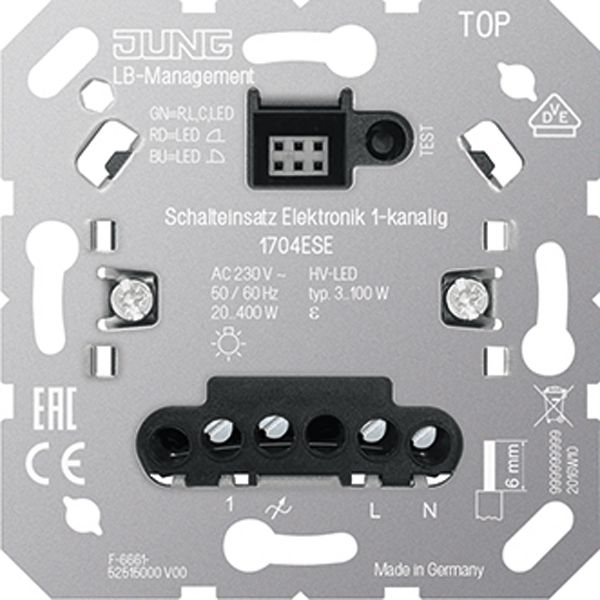

Electronic switch insert 1-channel 1704ESE
Order only
Price (excl. VAT):
85,97 €
EAN: 4011377166899
MPN: 1704ESE
Box: 1
Pallet: 1200
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Electronic switch insert 1-channel 1704ESE |
| Brand | Jung |
| Categories |
Switches
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Nominal voltage | 230 V |
| Mounting method | Flush mounted (plaster) |
| Frequency | 50-60 Hz |
Packing details
| Packing level 1 | 4011377166899 |
| Packing level 2 | 4011377166899 |
| Packing level 3 | 4011377166899 |
| Packing level 4 | 4011377166899 |
Other Technical data
| Assembly arrangement | Basic element |
| Model | Tronic |
| Rated current | 16 A |
| Type of load | Other |
| Type of fastening | Mounting with claw and screw |
| Light value memory | No |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Applicable with movement sensor | Yes |
| Applicable with transmission button | Yes |
| Applicable with infrared button | No |
| Applicable with presence indicator | Yes |
| Applicable with button | Yes |
| Applicable with time switch/timer | Yes |
| Switch capacity | 3-400 W |
| Transparent | No |
| Min. depth of built-in installation box | 0 mm |
Downloads
Description
Electronic switch insert for controlling power flow in single-channel systems, designed for integration into a building"s electrical infrastructure.Operates at nominal voltage 230 V and frequency compatibility ranges from 50 Hz to 60 Hz. Rated current:16 A.Mounting method:flush mounted (plaster).Type of fastening:mounting with claw and screw.Model designation:Tronic.Assembly arrangement:basic element.Min depth required for built-in installation box:0 mm.Substation input capability confirmed;applicable with button, movement sensor, presence indicator, time switch/timer, and transmission button.Switch capacity specified between 3 W and 400 W across operational scenarios;HVAC switching capacities unspecified.
