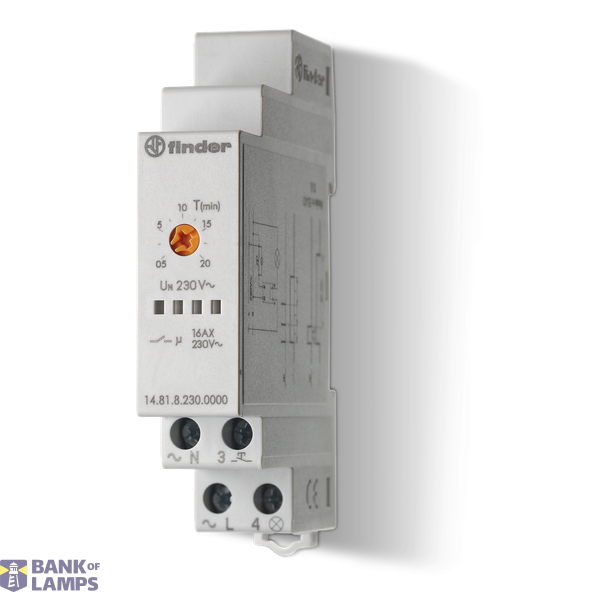

ELECTRONIC STAIRCSE TIMER

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	ELECTRONIC STAIRCSE TIMER
Brand	FINDER
ETIM	EC000297
Mounting method	DIN rail
Function	Electronic
Release-delay	0.5-20 min
Control voltage 1	230 V
Type of control voltage 1	AC
Wiring system	3 and 4 wire configuration
Pre-warning of switching-off	None
Repetitive	Repetitive + continuous light + time extension
Voltage type of supply voltage	AC
Supply voltage	110-125 V
Max. incandescent lamp load	3000 W
Max. load fluorescent lamp	1000 VA
Rated switch current	16 A

Packing details

Packing level 1	8012823349688
Packing level 2	8012823349671

Other Technical data

Width in number of modular spacings	1
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0

Description

Electronic staircase timers Nr.contacts: 1 Contacts configuration: NO Contact Material: AgSnO2 Mounting method: DIN rail Function: Electronic Release-delay: from 0.5 to 20 min. Width in number of modular spacings: 1 Control voltage 1: 230 V. Type of control voltage 1: AC Wiring system: 3 and 4 wire configuration Pre-warning of switching-off: None Repetitive: Repetitive + continuous light + time extension Voltage type of supply voltage: AC Supply voltage: from 110 to 125 V. Max. incandescent lamp load: 3000 W. Max. load fluorescent lamp: 1000 VA. Rated switch current: 16 A. Protection Category: IP20
