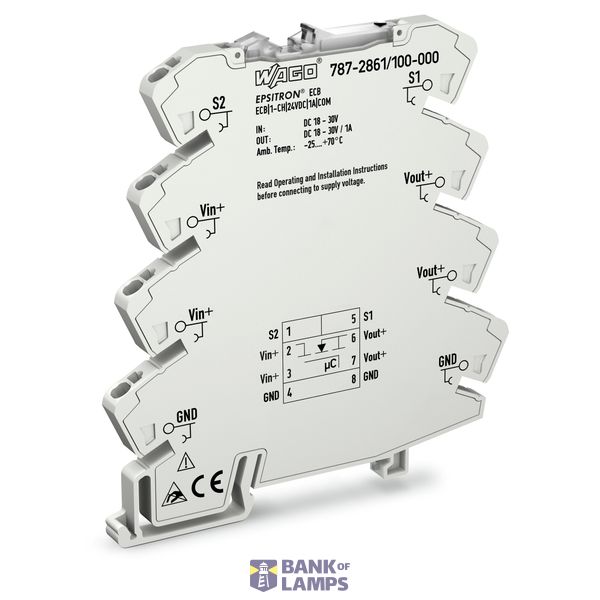

Electronic circuit breaker 1-channel 24 VDC input voltage
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Electronic circuit breaker 1-channel 24 VDC input voltage |
| Brand | WAGO |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3010 00 |
| ETIM | EC001440 |
| Single-phase under current possible | No |
| Function DC-current hysteresis | No |
| Type of electric connection | Spring clamp connection |
| Number of contacts as normally open contact | 0 |
Packing details
| Packing level 1 | 4055143951289 |
Other Technical data

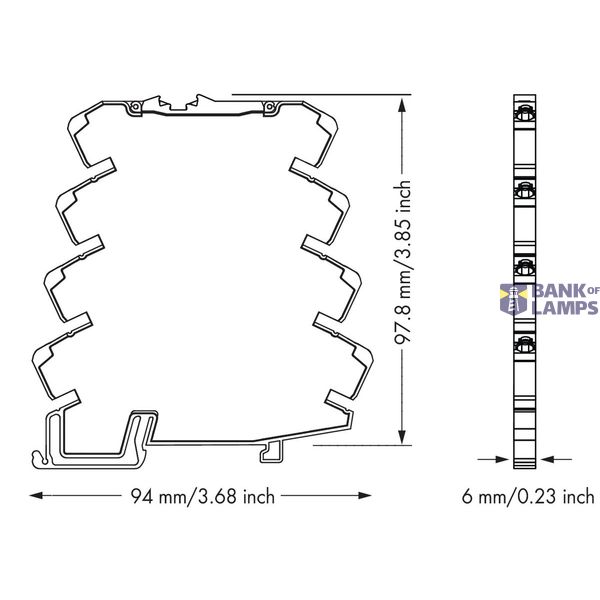

| Width | 6 mm |
| Height | 97.8 mm |
| Depth | 95 mm |
| External current transformer | No |
| With detachable clamps | No |
| Single-phase hysteresis possible | No |
| Three-phase hysteresis possible | No |
| Three-phase under current possible | No |
| Single-phase overcurrent possible | Yes |
| Three-phase overcurrent possible | No |
| Contains function DC-voltage under current | No |
| Contains function DC-voltage overcurrent | No |
| Rated control supply voltage at DC | 18-30 V |
| Voltage type for actuating | DC |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as change-over contact | 0 |
Description

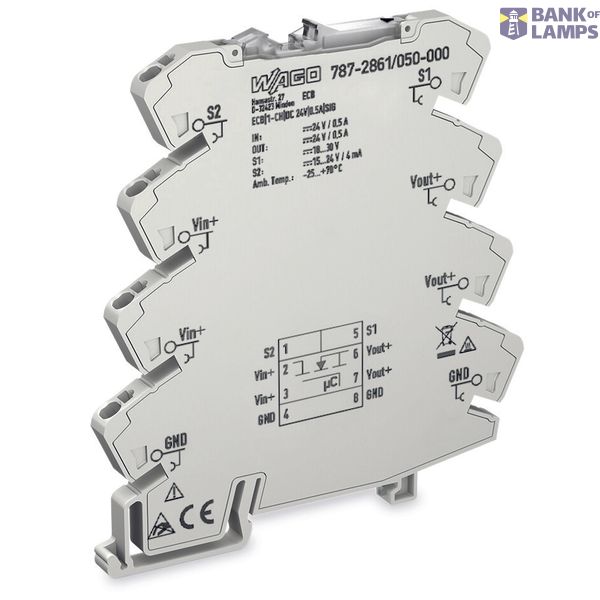

Electronic circuit breaker 1-channel 24 VDC input voltage 0.5 A Signal contact
