Electrical accessories Arimo Fit C White 4LV + 2LV 7714550

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

278,25 €

This price is valid until 24.12.25

EAN: 4018242584468

MPN: 7714550

Package: 1

Pallet: 4

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Electrical accessories Arimo Fit C White 4LV + 2LV 7714550
Brand	TRILUX
Categories	Luminaire accessories
Country of origin	DE

Packing details

Packing level 1	4018242584468, 4018242584468
Packing level 2	4018242855018

Description

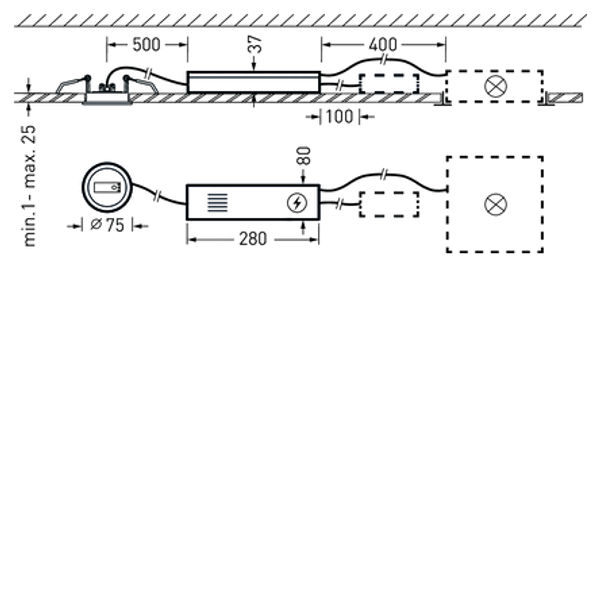

Emergency light system for ceiling recessing with an emergency light operation time of 3 hours. 4 status LEDs with a transparent lens are embedded in the round cover. The ceiling recessing module is fastened by means of spring clips. The ceiling recessing module is connected to the emergency inverter via an installed cable with plug connector. The emergency inverter is protected by a sheet steel housing and can be placed on the intermediate ceiling. Dimensions (L x W): 200 mm x 80 mm, height 31 mm. Depending on the luminaire, the connection to the control gear unit and luminaire is made via rapid plug connection or plug contacts on the components. Suitable for both DALI-dimmable and switchable luminaires. Cover made of plastic, colour white, Ø 75 mm. For ceiling cut-outs: Ø 68 mm. Ceiling thickness 1 mm - 25 mm, Recess depth ≥ 50 mm. Depending on the combined luminaire of the ArimoFit (Sky)... series, the following luminaire luminous flux levels are achieved in emergency light operation: M52 = 475 lm, M46 = 500 lm, M48 = 500 lm, M57 = 500 lm, M59 = 500 lm, M73 = 575 lm, M84 = 575 lm.
