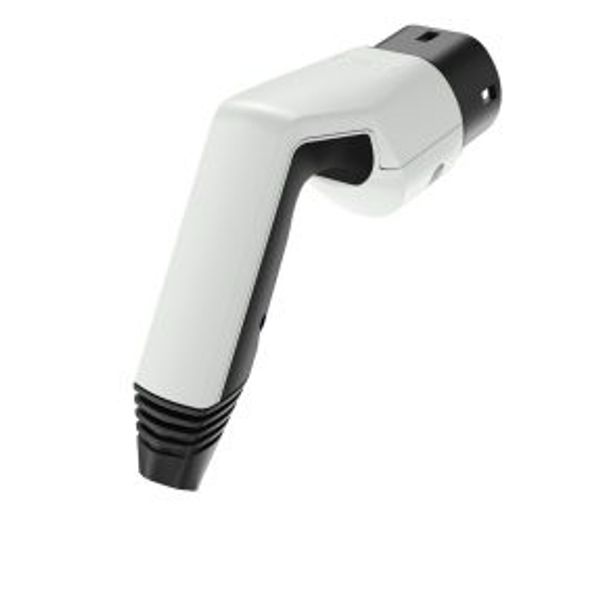

ELECTRIC VEHICLE CHARGING CONNECTOR - MOBILE - TYPE 2 - 1 POLE - 32 A - 7.4 kW
Order only
Price (excl. VAT):
27,01 €
EAN: 8034035078422
MPN: GWJ5101B
Package: 1
Pallet: 96
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ELECTRIC VEHICLE CHARGING CONNECTOR - MOBILE - TYPE 2 - 1 POLE - 32 A - 7.4 kW |
| Brand | GEWISS |
| Categories |
Charging cable E-Mobility
|
| Harmonized System Code | 8536 9010 00 |
| Nominal voltage | 230 V |
| Model | Charging connector |
| Type of current | AC single phase |
| Degree of protection (IP) | Other |
| Standard | Type 2 |
| Max. nominal current | 32 A |
Packing details
| Packing level 1 | 8034035078422 |
| Packing level 2 | 8034035078422 |
Other Technical data
| Width | 72 mm |
| Height | 141 mm |
| Depth | 225 mm |
| Surface treatment contacts | Silver-plated |
| Connection system | Screw connection |
| Contact material | CuZn |
| With interlocking actuator | No |
| With access interlocking | No |
| Number of communication contacts | 1 |
| Length of the fixed connection cable | 0 m |
| LED integrated | No |
Downloads
Description
JOINON Range Electric vehicle charging socket - Type2 - A range of Type 2 electric vehicle charging sockets that meet international standards IEC 62196-1 and IEC 62196-2 and are suitable for use on EV charging units in compliance with IEC 61851. The range includes charging cables for electric vehicles, Type 2 mobile sockets with or without cable, and Type 2 flush-mounted sockets equipped with safety shutters (IPXXD protection), a double drain for water drainage, a vandal-proof system, and an actuator that locks the shutter and interlocks the plug during energy delivery.
