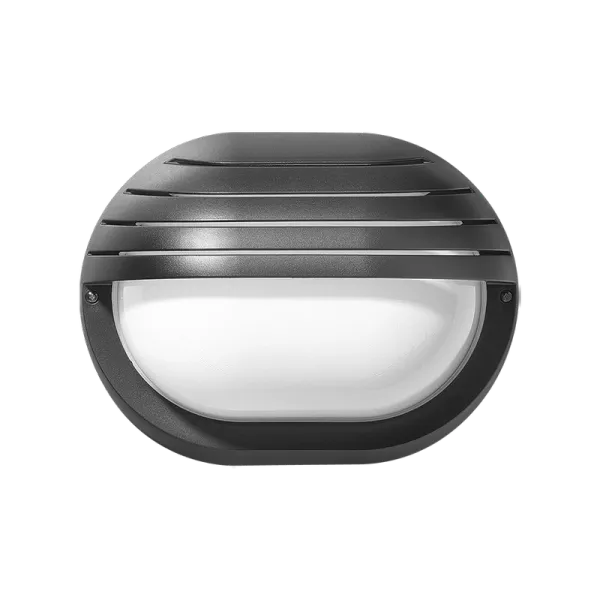

EKO19 GRILL LED 840 BLACK 6.5W

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

84,04 €

This price is valid until 24.12.25

EAN: 8018367672466

MPN: 3100209

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	EKO19 GRILL LED 840 BLACK 6.5W
Brand	Performance in Lighting
Categories	Wall and ceiling luminaires
Country of origin	IT
Harmonized System Code	9405 1140 00

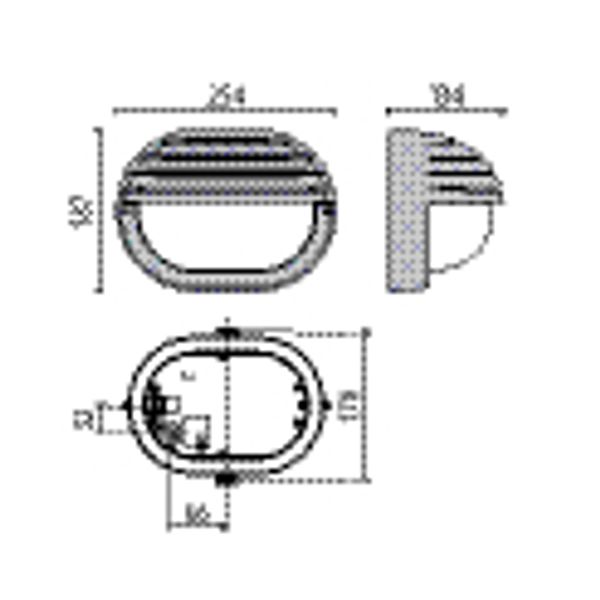

Width	187 mm
Colour housing	Black
Colour rendering index CRI	80-89
Length	254 mm
Height/depth	134 mm
Lamp type	LED not exchangeable
Impact strength	IK06
Nominal voltage	220 V

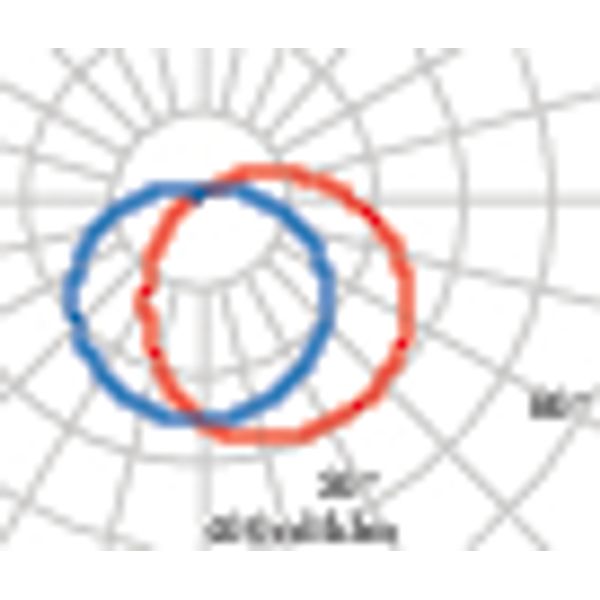

Beam angle	Extreme wide beam >80°
Colour temperature	4000 K
Max. system power	6.5 W

Packing details

Packing level 1

8018367672466, 8018367672466

Other Technical data

Protection class	I
Lamp holder	Other
Connection type	Push-in clamp
Voltage type	AC/DC
With movement sensor	No
Suitable for lamp power	5 W
Type of grid	None
Type of control gear	LED operating device current-controlled
With light sensor	No
Suitable for suspended mounting	No
Housing material	Plastic
Suitable for light line configuration	No
Suitable for emergency lighting	No
Light outlet	Direct
Light sharing	Asymmetric
Material cover	Glass opal
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	No
Covering of the luminaire with thermally insulating material possible	No
Suitable for number of lamps	1
Suitable for built-in mounting	No
With control gear	Yes
Suitable for workplace according to EN 12464-1	No
Suitable for surface mounting	No
Colour of light	White
With air slots	No
Constant light output (CLO)	No
IFTTT support available	No
Colour consistency (McAdam ellipse)	SDCM3
Photobiological safety according to EN 62471	RG1
Rated ambient temperature according to IEC62722-2-1	-20 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
Light distributor	Diffuser lens/optic/panel
Dimming DSI	No
Operation by Bluetooth	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
Max. number of luminaires per miniature circuit breaker C16	85
Max. number of luminaires per miniature circuit breaker B16	50
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)	91.6 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	87.9 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)	82 %
Dimming DALI-2	No
Colour temperature adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	Yes
Suitable for ceiling mounting	No
Surface protection housing	Untreated
Power factor	0.9

Downloads

Mounting instruction Product data sheet

Description

Plafond- en wandarmatuur voor binnen en buiten bestaande uit: Behuizing, ring en schermen (/G, GRILL, SPLIT)van technopolymeer. Afscherming van geperst glas, van binnen gesatineerd. Reflector van aluminium voor de versies E27. Schroeven van roestvrij staal. Montageplaat van aluminium voor de fluorescentie versies. Anti-vandalisme kit als accessoire leverbaar. DETEK Configuratie met bewegingssensor geïntegreerd aan de armatuur met behulp van een behuizing van technopolymeer. De bewegingssensor is geschikt voor zowel ohmse als inductieve belasting. Instelling uitschakeltijd van 6 seconden tot 20 minuten. Bereik instelbaar van 5 lux tot daglichtniveau. De sensor moet altijd naar beneden gericht zijn. Detectiehoek verticaal 360°, horizontaal 100°. Alle versies zijn op aanvraag beschikbaar met polycarbonate afscherming IK10. Ook verkrijgbaar in ronde versie.
