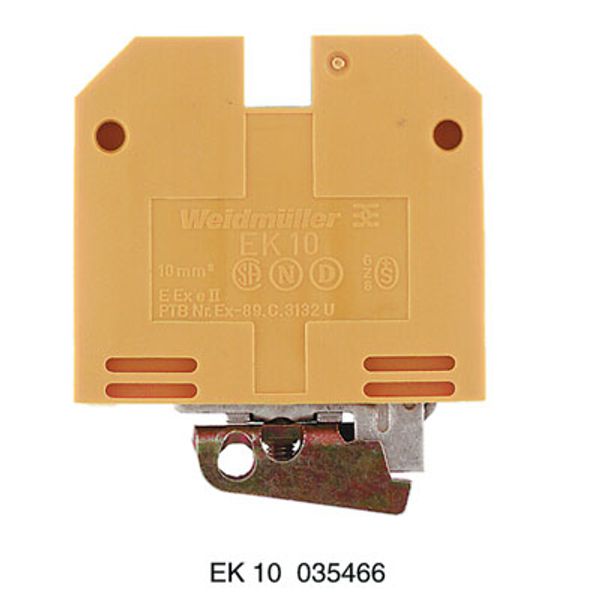

PE terminal, Screw connection, yellow, green, 10 mm², 800 V, Number of connections: 2, Number of levels: 1, TS 32, V-2, PA 66 image 1
Weidmüller

PE terminal, Screw connection, yellow, green, 10 mm², 800 V, Number of connections: 2, Number of levels: 1, TS 32, V-2, PA 66

In stock: No Vendor stock: No Minimal order quantity: 50
Price (excl. VAT):
6,44 €
This price is valid until 31.12.25
Subtotal: 322,00 € MOQ: 50
EAN: 4008190069827
MPN: 0354660000
Box: 1
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name PE terminal, Screw connection, yellow, green, 10 mm², 800 V, Number of connections: 2, Number of levels: 1, TS 32, V-2, PA 66
Brand Weidmüller
Categories DIN Rail Terminal Blocks
Country of origin RO
Harmonized System Code 8536 9010 00
Mounting method G-rail
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Other
PEN function possible No
Number of levels 1
Number of clamp positions per level 2
Connectable conductor cross section solid-core 0.5-10 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.5-10 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.5-10 mm²
Connectable conductor cross section multi-wired 1.5-6 mm²

Packing details

Packing level 1 4008190069827

Other Technical data

Colour Other
Width 10 mm
Height 40 mm
Depth 51.5 mm
Operating temperature -50-100 °C
Inflammability class of insulation material according to with UL94 V2
Closing plate required No
Material insulation body Thermoplastic

Description

Terminal block for connecting protective earth conductors to the mounting base (earth). Hardened steel withstands the mechanical forces, tin-coated copper ensures top conductivity.

Accessories

End bracket, beige, TS 32, V-0, Wemid, Width: 15 mm, 100 °C
In stock: No
Weidmüller
End bracket, beige, TS 32, V-0, Wemid, Width: 15 mm, 100 °C
0,77 €
This price is valid until 24.12.25
Subtotal: 38,50 € MOQ: 50
EAN: 4008190023546
MPN: 0199360000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
End bracket, beige, TS 32, V-0, Wemid, Width: 9 mm, 100 °C
In stock: No
Weidmüller
End bracket, beige, TS 32, V-0, Wemid, Width: 9 mm, 100 °C
0,56 €
This price is valid until 24.12.25
Subtotal: 28,00 € MOQ: 50
EAN: 4008190080020
MPN: 0206160000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
End bracket, dark beige, TS 32, V-2, PA 66 GF 30, Width: 12 mm, 100 °C
In stock: No
Weidmüller
End bracket, dark beige, TS 32, V-2, PA 66 GF 30, Width: 12 mm, 100 °C
1,77 €
This price is valid until 24.12.25
Subtotal: 88,50 € MOQ: 50
EAN: 4008190099657
MPN: 1067600000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
End bracket, beige, TS 35, V-2, Wemid, Width: 8.5 mm, 100 °C
In stock: No
Weidmüller
End bracket, beige, TS 35, V-2, Wemid, Width: 8.5 mm, 100 °C
0,284 €
This price is valid until 24.12.25
Subtotal: 14,20 € MOQ: 50
EAN: 4008190181314
MPN: 0383560000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Dekafix, Terminal marker, 5 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, white
In stock: Yes
Weidmüller
Dekafix, Terminal marker, 5 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, white
0,03 €
This price is valid until 24.12.25 or while stock lasts
Subtotal: 30,00 € MOQ: 1000
EAN: 4008190397111
MPN: 1609801044
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Dekafix, Terminal marker, 5 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, To customer specification
In stock: No
Weidmüller
Dekafix, Terminal marker, 5 x 5 mm, Pitch in mm (P): 5.00 Weidmueller, To customer specification
0,087 €
This price is valid until 24.12.25
Subtotal: 17,40 € MOQ: 200
EAN: 4008190456597
MPN: 1609810000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Accessories, Marker holder
In stock: No
Weidmüller
Accessories, Marker holder
0,062 €
This price is valid until 24.12.25
Subtotal: 6,20 € MOQ: 100
EAN: 4032248270231
MPN: 1805490000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Accessories, Marker holder
In stock: No
Weidmüller
Accessories, Marker holder
0,062 €
This price is valid until 24.12.25
Subtotal: 6,20 € MOQ: 100
EAN: 4032248270248
MPN: 1805520000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Dekafix, Terminal marker, 5 x 8 mm, Pitch in mm (P): 8.00 Weidmueller, white
In stock: No
Weidmüller
Dekafix, Terminal marker, 5 x 8 mm, Pitch in mm (P): 8.00 Weidmueller, white
0,039 €
This price is valid until 24.12.25
Subtotal: 31,20 € MOQ: 800
EAN: 4032248782055
MPN: 1046350000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
Dekafix, Terminal marker, 5 x 8 mm, Pitch in mm (P): 8.00 Weidmueller, To customer specification
In stock: No
Weidmüller
Dekafix, Terminal marker, 5 x 8 mm, Pitch in mm (P): 8.00 Weidmueller, To customer specification
0,087 €
This price is valid until 24.12.25
Subtotal: 13,92 € MOQ: 160
EAN: 4032248782079
MPN: 1046370000
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
