ED-CCS 01/02/03 b+c - Control point, square-edge silver
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
416,33 €
EAN: 9008709051119
MPN: 22154657
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ED-CCS 01/02/03 b+c - Control point, square-edge silver |
| Brand | Zumtobel |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin | AT |
| Harmonized System Code | 8536 5080 00 |
| With display | No |
| With temperature controller | No |
| With bus connection | No |
Packing details
| Packing level 1 | 9008709051119, 9008709051119 |
Other Technical data
| Colour | Silver |
| With time switch clock | No |
| Bus system Powernet | No |
| Material | Plastic |
| With integrated DCF77 receiver | No |
| With anti-theft/dismantling protection | No |
| Presence button | No |
| Central functional unit for senders/actuators | No |
| Degree of protection (IP) | IP20 |
| Transparent | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Downloads
Description

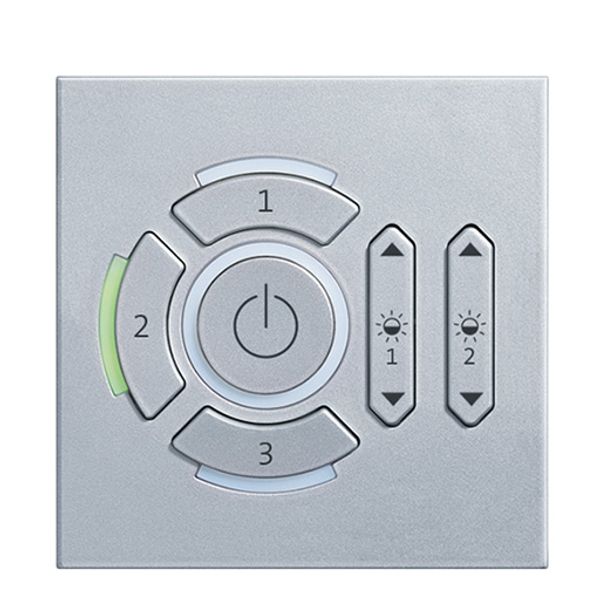

Circle Control point, square-edge silver with circular button layout for running three lighting scenes (room scenarios). A green LED indicates the active scene. Central Come/Go button for use on entering/leaving the room. If the "Go" scene is enabled (no one in room), the Come/Go button has a red illuminated surround for orientation.
In addition, the user can manually adjust the active scene using two equipment rocker switches for controlling two installations in the room.
The package and rocker switches are made of plastic in silver satin-matt finish. All buttons are printed with intuitive pictograms.
Fitted in a single standard Euro backbox or UK metal backbox (not included); screws invisible after installation.
The control unit is connected to the DALI control line using a pluggable screw terminal (interchangeable polarity).
Power supplied via the DALI control line (no mains connection) for a current consumption of 6mA (3 DALI loads).
Dimensions: 87 x 87 x 13 mm, weight: 0.15 kg.
