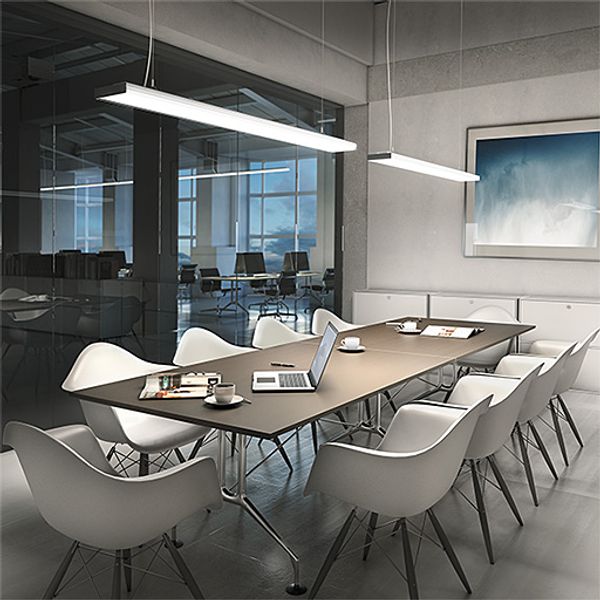

ECOOS2 SLIM 5500-940 MSP L15 MPO LDE - Pendant luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
499,03 €
EAN: 9010299085870
MPN: 42186828
Package: 1
Pallet: 23
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ECOOS2 SLIM 5500-940 MSP L15 MPO LDE - Pendant luminaire |
| Brand | Zumtobel |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Built-in mounting lamps Surface mounting lamps |
| Country of origin | RS |
| Harmonized System Code | 9405 1140 00 |
| Width | 152 mm |
| Colour housing | Other |
| Colour rendering index CRI | 90-100 |
| Length | 1512 mm |
| Height/depth | 48 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 44.2 W |
| Rated luminous flux according to IEC 62722-2-1 | 5400 lm |
| Luminaire efficacy | 123 lm/W |
Packing details
| Packing level 1 | 9010299085870, 9010299085870 |
| Packing level 2 | 9010299085870 |
Other Technical data
| Protection class | I |
| Lamp holder | Other |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct/indirect |
| Light sharing | Symmetric |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Total harmonic distortion | 8.3 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | Yes |
| No dim function | No |
| Dimming DSI | Yes |
| Unified Glare Ratio (UGR) | 18 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 35 |
| Max. number of luminaires per miniature circuit breaker B16 | 21 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 90 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.97 |
Downloads
Description
Purist Surface-mounted and pendant LED luminaire, with micropsimatic optic; Luminaire input power: 44.2 W; DALI controllable luminaire with LED converter; LED service life lasts 100000 h before luminous flux is reduced to 90% of the initial value. Chromaticity tolerance (initial MacAdam): 3. Luminaire luminous flux: 5400 lm, Luminaire efficacy: 122 lm/W. Colour rendering Ra > 90, colour temperature 4000 K. Light guided via patented Curved Wave Guide light coupling and MPO-plus micro-pyramidal optic with multi-layer construction for defined light emission with UGR < 19 and L< 3000 cd/m² at 65° for computer screen applications; gear tray made of extruded aluminium section white, painted; luminaire comprises optic and gear tray; please order design end caps (available in various colours) and suspension kit separately. Luminaire wired with halogen-free leads. glow-wire test: 650°C; Dimensions: 1512 x 152 x 48 mm, weight: 7.4 kg
