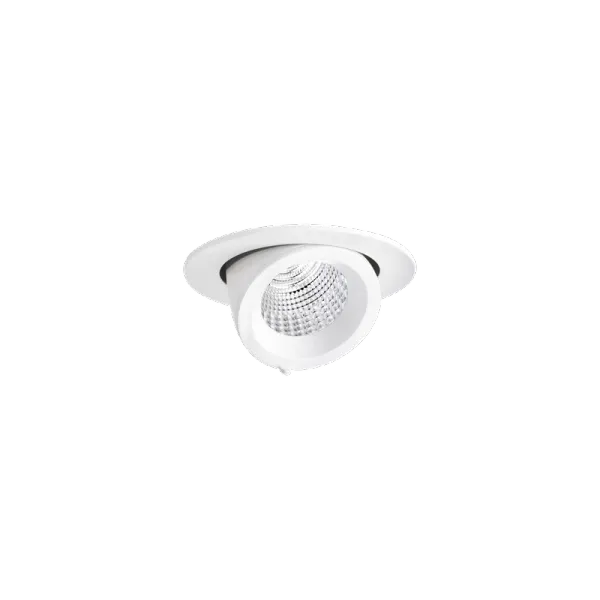

EB431 LED (85mm) 9W 830 FLOOD WIT
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
52,15 €
EAN: 4046075046549
MPN: 8431174073310
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | EB431 LED (85mm) 9W 830 FLOOD WIT |
| Brand | Performance in Lighting |
| Categories |
Recessed lights
|
| Country of origin | IT |
| Harmonized System Code | 9405 1190 00 |
| Colour rendering index CRI | 80-89 |
| Height/depth | 65 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK02 |
| Nominal voltage | 220 V |

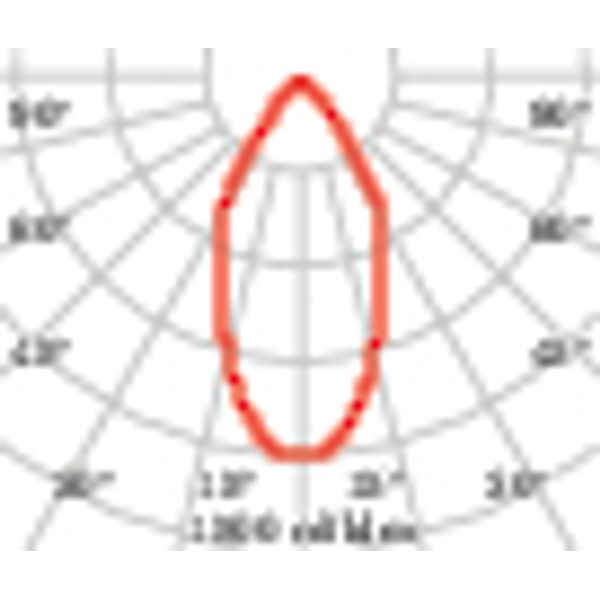

| Beam angle | Wide beam 41-80° |
| Colour temperature | 3000 K |
| Max. system power | 9 W |
Packing details
| Packing level 1 | 4046075046549, 4046075046549 |
Other Technical data
| Protection class | II |
| Outer diameter | 85 mm |
| Reflector | High-gloss |
| Lamp holder | Other |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 7 W |
| Type of control gear | LED operating device current-controlled |
| Suitable for wall mounting | No |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Connectable conductor cross section | 0.75 mm² |
| Surface brushed | No |
| Nominal current | 500 |
| Colour of light | White |
| Adjustability | Rotating and swivelling |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 71900 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG1 |
| Degree of protection (NEMA) | 1 |
| Rated ambient temperature according to IEC62722-2-1 | 10 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Reflector |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 24.8 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 92 |
| Max. number of luminaires per miniature circuit breaker B16 | 92 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 87 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 82.7 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 70 % |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Built-in diameter | 75 mm |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.89 |
Downloads
Description
Led inbouwspot voor gebruik binnenshuis, bestaande uit: Behuizing spot en ring van gepoedercoat spuitgiet aluminium. Reflector dankzij uniek zwenkmechanisme horizontaal en naar binnen en buiten zwenkbaar. Draaibaar op 60° (-15 naar 45°), rotatie van 355°. Hoogglans gefacetteerde reflector van zeer zuiver aluminium voor maximale lichtopbrengst van de lamp en neutrale kleurweergave. Reflector in uitvoering Flood. Kleurtolerantie volgens MacAdam = 3 SDCM. Geen gereedschap nodig voor de montage aan het plafond. Inclusief driver. Montageveren voor plafondbevestiging. Compleet met beschermingsglas.
