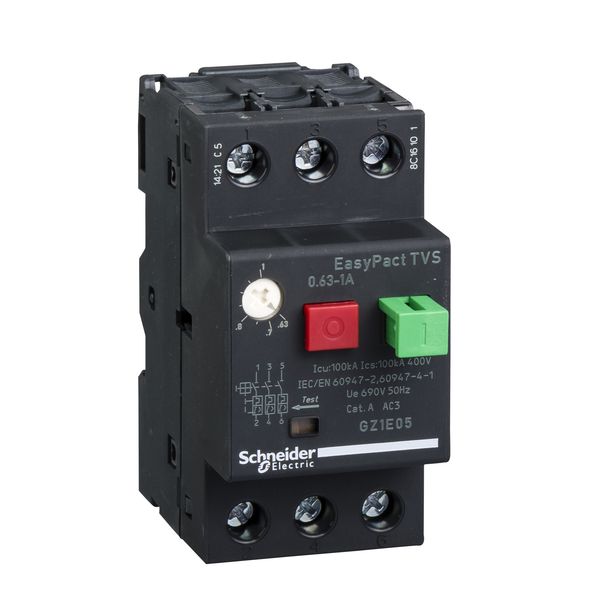

EASYPACT MOTORBEV. SCHAK 0.63-1 A

Order only

Price (excl. VAT):

24,98 €

This price is valid until 24.12.26

EAN: 3606480567810

MPN: GZ1E05

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	EASYPACT MOTORBEV. SCHAK 0.63-1 A
Brand	Schneider Electric
Categories	Motor protection circuit-breakers
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 2010 00
Rated permanent current Iu	1 A
Number of poles	3
Rated operating voltage	690 V
Overload release current setting	0.63-1 A
Degree of protection (IP)	IP20
Rated short-circuit breaking capacity lcu at 400 V, AC	100 kA
Adjustment range undelayed short-circuit release	13 A

Packing details

Packing level 1

3606480567810

Other Technical data

Width	44.5 mm
Height	89 mm
Depth	78 mm
Rated operation power at AC-3, 400 V	0 kW
With integrated auxiliary switch	No
With integrated under voltage release	No
With thermal protection	Yes
Type of electrical connection of main circuit	Screw connection
Type of control element	Push button
Switch off technique	Thermomagnetic
Rated operation power at AC-3, 230 V	0 kW
Phase failure sensitive	No
Device construction	Complete device in housing

Description

GZ1 E are 3 poles 3d thermal-magnetic circuit breakers specifically designed for the control and protectin of motors conforming to standards IEC 60947-2 and IEC 60947-4-1. Setting range of thermal trips is 0.63-1A with thermomagnetic trip unit. It provides IP 41 in GV2 MC01 enclosure and IP 55 in GV2 MC02 enclosure protection. It procures standard reliability and durability with 0.1 Mcycles electrical/mechanical durability. These circuit breakers are designed for connection by screw clamp terminals. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).
