EASY-INSTALL QPAR51 DL, indoor recessed ceiling light, aluminium, matt, square
In vendor's stock
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | EASY-INSTALL QPAR51 DL, indoor recessed ceiling light, aluminium, matt, square |
| Brand | SLV |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1990 00 |
| ETIM | EC001744 |
| Width | 89 mm |
| Length | 89 mm |
| Height/depth | 70 mm |
| Lamp type | LED exchangeable |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP21 |
| Max. system power | 0 W |
| Rated luminous flux according to IEC 62722-2-1 | 0 lm |
| Luminaire efficacy | 0 lm/W |
Packing details
| Packing level 1 | 4024163235082 |
Other Technical data
| Protection class | II |
| Outer diameter | 0 mm |
| Reflector | None |
| Lamp holder | GU10 |
| Conductor cross section | 0 mm² |
| Colour housing | Aluminium |
| Surface protection | Lacquered |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 20 W |
| Type of control gear | Not required |
| Suitable for wall mounting | No |
| Energy efficiency class | A++ |
| Built-in width | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Luminous intensity | 0 cd |
| Number of poles | 0 |
| Housing material | Aluminium |
| Built-in length | 0 mm |
| Light outlet | Direct |
| Material cover | None |
| Emergency power supply integrated | No |
| With light source | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Surface brushed | No |
| Adjustability | Not adjustable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Total harmonic distortion | 0 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | Yes |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Other |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 0 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0 |
| Stroboscope effect value SVM | 0 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Built-in diameter | 75 mm |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 70 mm |
| Power factor | 0 |
Description

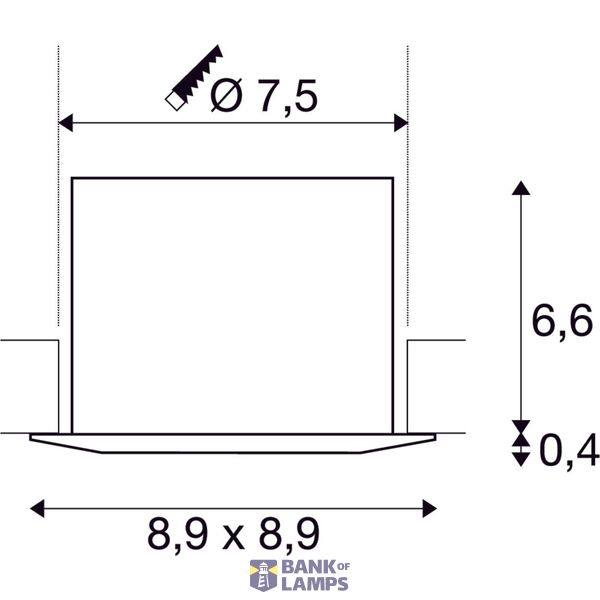

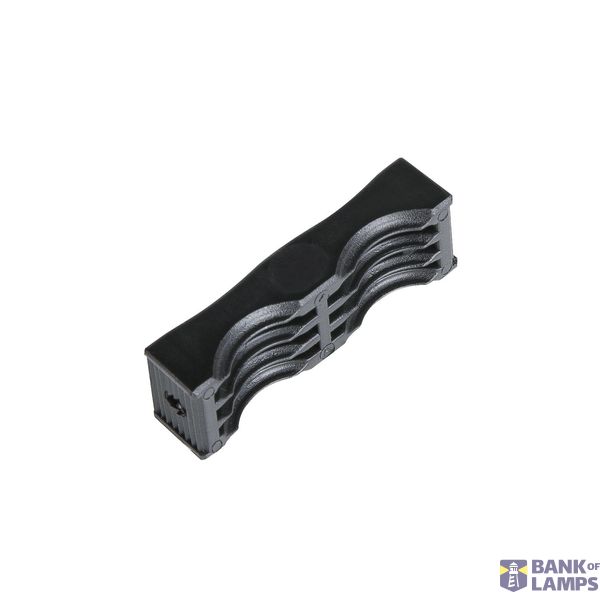

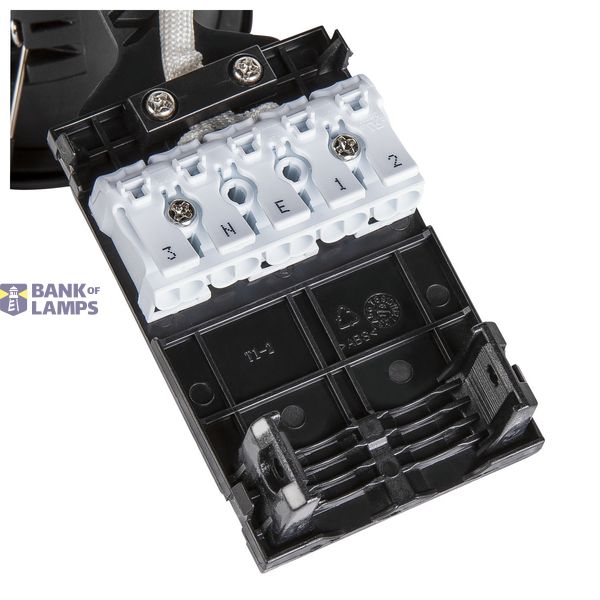

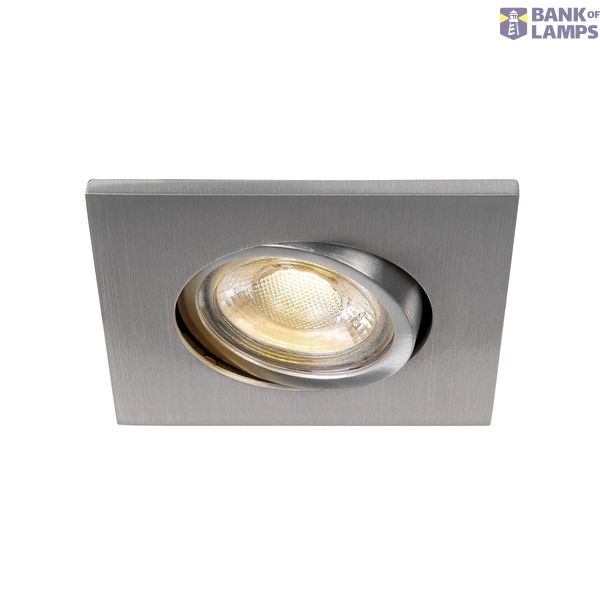

This recessed spotlight from SLV generates much more than just light. The EASY-INSTALL MASTER QPAR51 is a lighting experience which starts with the first touch, impresses during installation and is a source of enthusiasm in everyday life. The quality of this luminaire becomes evident as soon as you start to unpack it. The high-quality aluminium and the workmanship of the materials set standards in terms of haptic perception. A QPAR51 lamp of your choice can be used in the GU10 socket (max. Ø 5cm, h 5.4cm, max. 20W, not included in scope of delivery). The installation depth is 6.5 cm and the user can decide whether the ceiling spot is installed using the clip springs or with adjustable screws in accordance with the situation (depending on the thickness of the subsurface). Delivery takes place with two clamps for cables or installation tubes with a diameter of up to 16mm. Another decisive difference is the removable panel, which is a significant advantage if painting or renovation work needs to be carried out, for example. The benefits are rounded off by the through-wiring capability using tool-less spring clamps, which makes installation considerably easier and reduces the amount of cable material. Please note that direct installation in insulating material is only possible with lamps up to a maximum of 7W because of heat radiation. It is not just electricians, installers and tradespeople who swear by the flexibility of this LED recessed fitting. EASY-INSTALL QPAR51 is available in different surface colours and as a standard and a master version. The master version makes easy control and dimming of standard versions up to a total of 120W possible. Control takes place using a conventional button. The master also has an integrated dimmer, a memory function and adjustable minimum brightness. The light outlet of this recessed spotlight can be swivelled by 25° so that the user can always point the light in the required direction. And all of this including a 5-year warranty, of course. You can look forward to your product with the customary SLV quality!
