EASY-INSTALL MINI LED, DL, indoor recessed ceiling light, 2700K, white
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | EASY-INSTALL MINI LED, DL, indoor recessed ceiling light, 2700K, white |
| Brand | SLV |
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001744 |
| Width | 0 mm |
| Colour rendering index CRI | 80-89 |
| Length | 0 mm |
| Height/depth | 41 mm |
| Lamp type | LED not exchangeable |
| Degree of protection (IP) | IP44 |
| Beam angle | Medium beam 21-40° |
| Colour temperature | 2700 K |
| Max. system power | 2 W |
| Rated luminous flux according to IEC 62722-2-1 | 85 lm |
| Luminaire efficacy | 42.5 lm/W |
Packing details
| Packing level 1 | 4024163192880 |
Other Technical data
| Protection class | III |
| Outer diameter | 33 mm |
| Reflector | None |
| Lamp holder | Other |
| Conductor cross section | 0 mm² |
| Colour housing | White |
| Surface protection | Lacquered |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 2 W |
| Type of control gear | Not required |
| Suitable for wall mounting | No |
| Built-in width | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Luminous intensity | 0 cd |
| Number of poles | 0 |
| Housing material | Aluminium |
| Built-in length | 0 mm |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic matt/satinized |
| Emergency power supply integrated | No |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Surface brushed | Yes |
| Colour of light | White |
| Adjustability | Not adjustable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| IFTTT support available | No |
| Luminous flux | 85 lm |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 0 h |
| Rated life time L80/B10 at 25 °C | 0 h |
| Total harmonic distortion | 0 |
| LED nominal current at constant current | 350 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Diffuser lens/optic/panel |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 0 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0 |
| Stroboscope effect value SVM | 0 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |

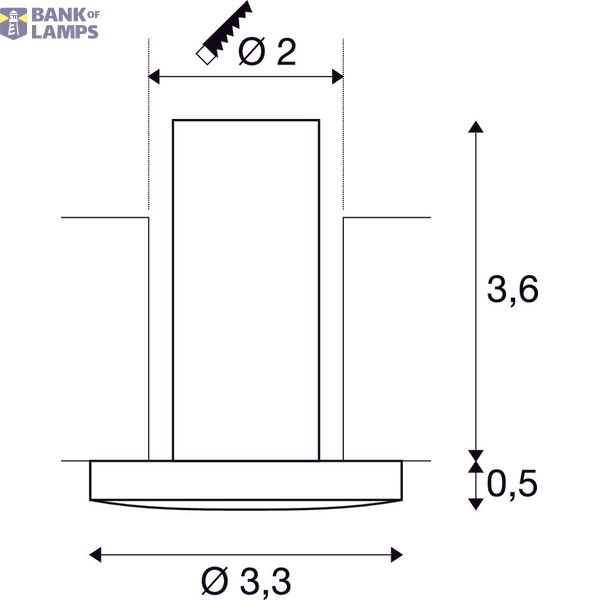

| Built-in diameter | 20 mm |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 40 mm |
| Power factor | 0 |
Description

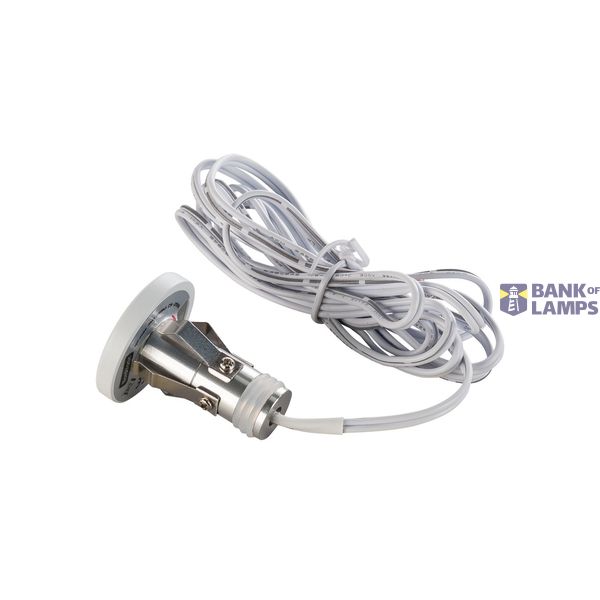

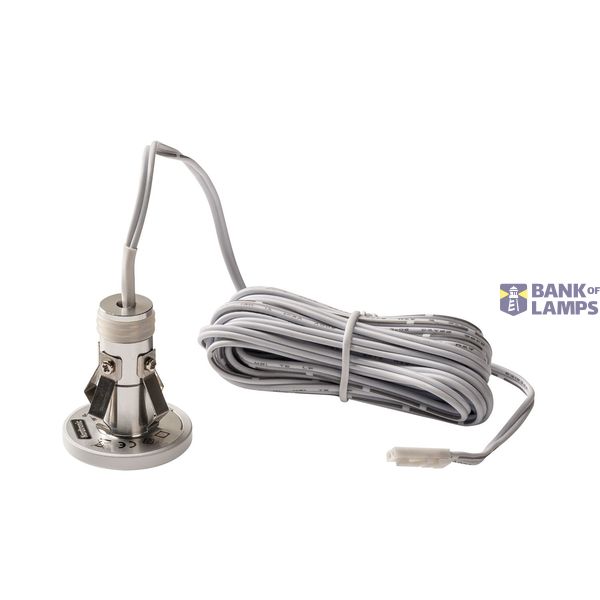

The white EASY-INSTALL MINI LED recessed spotlight from SLV does not just generate light. It is more of a lighting experience, which starts after the first touch, impresses during installation and brings enthusiasm into your everyday life. The quality of this mini-luminaire becomes evident as soon as you start to unpack it. The high-quality aluminium and the workmanship of the materials set standards in terms of both look and feel. Thanks to the minimal installation depth of 4 cm, the ceiling spot can be installed in many different situations, and the IP44 protection class also makes use in wet rooms possible. The decisive difference is the capability of direct installation in a 20 mm installation tube. The connection lead is 3 metres in length, and the EASY-INSTALL MINI LED spotlight can be installed in all kinds of insulating material due to the fact that the residual heat is led away towards the front. Please adhere to the minimum distances specified in the operating instructions during installation. It is not just electricians, installers and tradespeople who swear by the flexibility of this LED recessed fitting. The actual user is also impressed with the Mini LED spot with its service life of an incredible 50,000 hours. With light emission of 30°, the luminaire provides outstanding lighting accents. And all of this including a 5-year warranty, of course. You can look forward to your product with the customary SLV quality.
