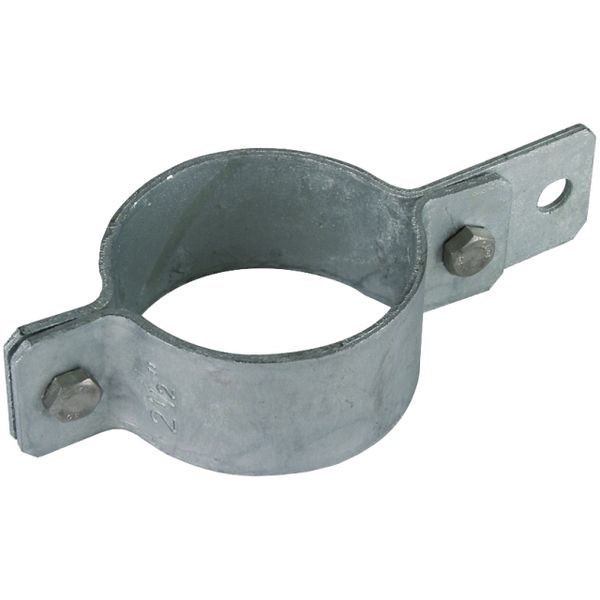

Earthing pipe clamp D 76mm with bore D 11mm St/tZn

Order only

Price (excl. VAT):

7,86 €

This price is valid until 24.12.25

EAN: 4013364026308

MPN: 410212

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Earthing pipe clamp D 76mm with bore D 11mm St/tZn
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8538 9099 00
Surface protection	Hot-dip galvanized
Number of conductors	1
Material	Steel
Clamping/chucking range	76 mm
Min. clamping range inch	2 1/2 inch
Max. clamping range inch	2 1/2 inch

Packing details

Packing level 1

4013364026308, 4013364026308

Downloads

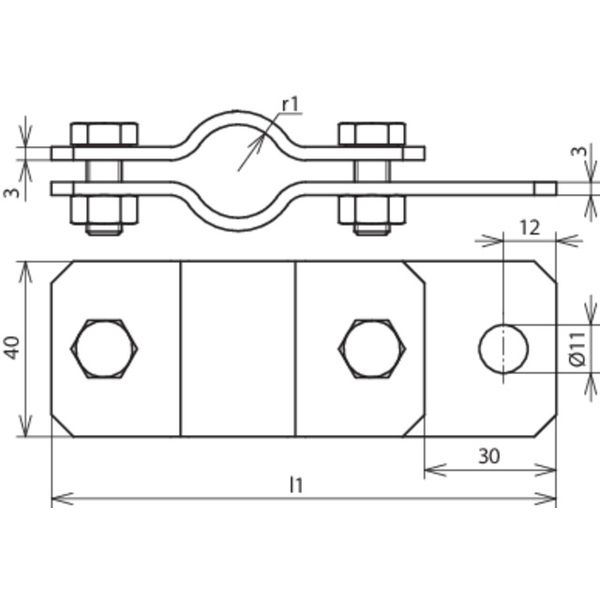

Product data sheet Dimensioned drawing Deep link REACH

Description

Earthing pipe clamp for lightning protection according to EN 62561-1, for integrating pipes in the protective and functional equipotential bonding according to IEC 60364-4-41 and 60364-5-54 and the lightning equipotential bonding according to IEC/EN 62305-3. Type St/tZn with screws M8, for connecting flat conductors with screws and nuts M10, for round conductors 7-10 mm, e.g. with KS connector, or for connecting the protective spark gap to the service entry mast.
