Earthing device f. railways f. feeding, bypass and other types of line
Order only
Price (excl. VAT):
2 536,65 €
EAN: 4013364123861
MPN: 750213
Package: 1
Estimate delivery time at our warehouse (approx.):
2 weeks
Technical Information
| Item condition | New |
| Manufacture name | Earthing device f. railways f. feeding, bypass and other types of line |
| Brand | Dehn |
| Categories |
Electrical Safety Equipment
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8535 9000 00 |
| Model | Cable |
| Number of poles | 1 |
| Max. short circuit current | 34 kA |
| Wire cross section, phase-side | 50 mm² |
| Wire cross section, earth-side | 50 mm² |
Packing details
| Packing level 1 | 4013364123861, 4013364123861 |
Other Technical data
| Material | Copper |
| Length 1-pole rope | 4000 mm |
| Connecting part, phase-side | Other |
| Connecting part, earth-side | Universal clamp 25/30 mm |
| Fully insulated | No |
Downloads
Description

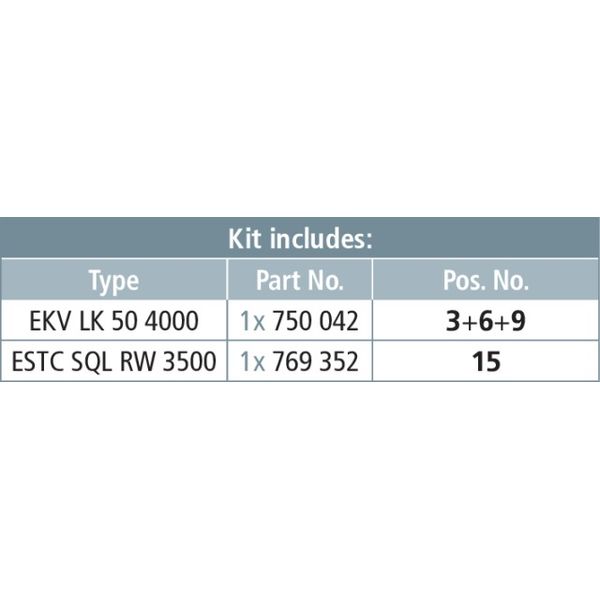

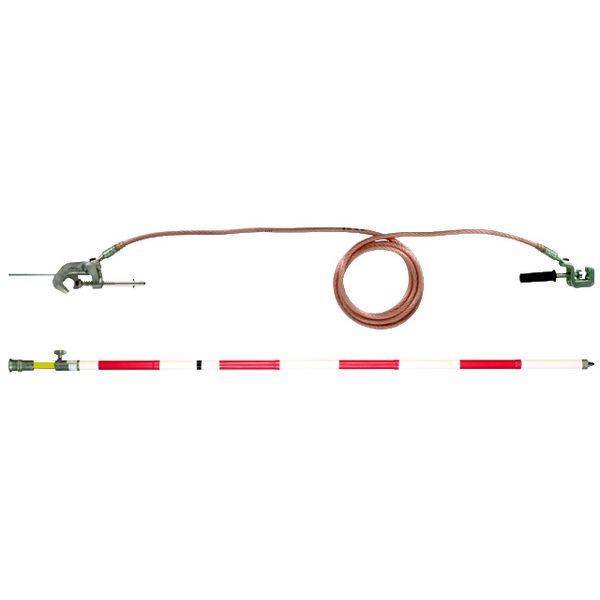

Earthing and short-circuiting kit in accordiance with EN/IEC 61230 (DIN VDE 0683-100) for earthing and short-circuiting supply lines, line feeders, bypass lines and other types of lines in accordance with EN 50110 (DIN VDE 0105-100). Telescopic earthing stick and single-pole earthing and short-circuiting device, 4 m long, with conductor clamp and universal clamp with handle included.
