Earthing conn. f. earthing large pipes, cable lug D 17mm, lug 80X30mm

Order only

Price (excl. VAT):

50,26 €

This price is valid until 24.12.25

EAN: 4013364439672

MPN: 419400

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Earthing conn. f. earthing large pipes, cable lug D 17mm, lug 80X30mm
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Connecting shaft	500 mm
Material connection lug	Other

Packing details

Packing level 1

4013364439672, 4013364439672

Downloads

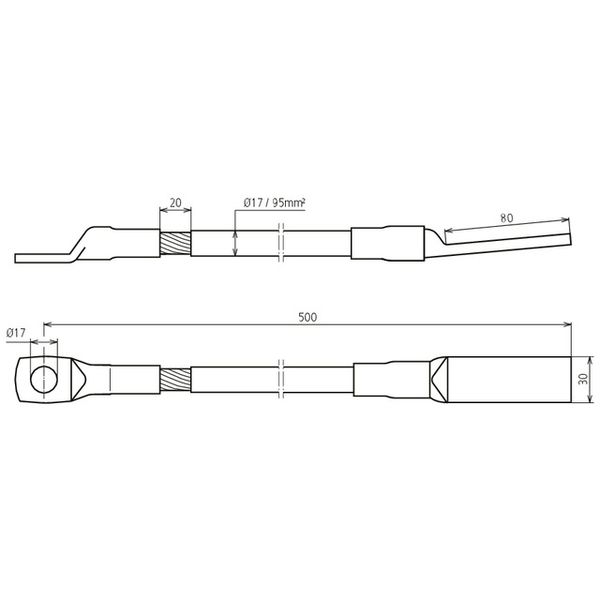

Product data sheet Dimensioned drawing

Description

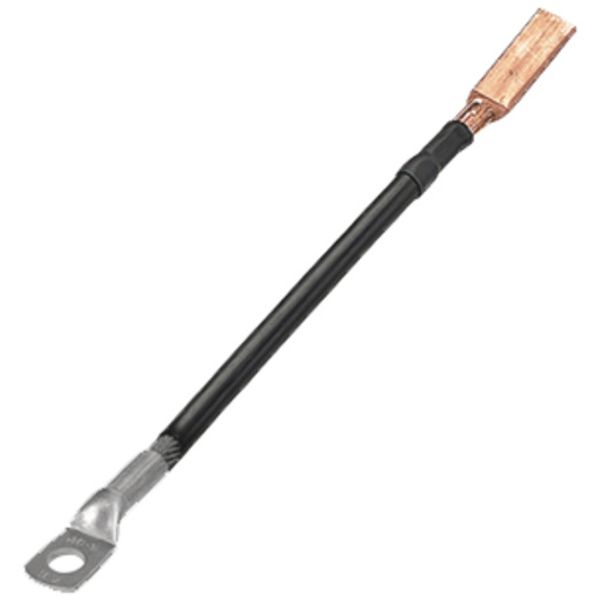

Earthing bridge for earthing large pipes as per the guideline of DB Netz AG Ril 997.0205A01, for earthing, return circuits and equipotential bonding in railway line applications. Consisting of pressed-on copper-plated steel lugs and a cable lug with a 17‑mm drill hole. The steel cable structure is a preventive anti-theft measure. Designed for short-circuit currents ≤ 25 kA.
