Earth bushing with ring groove D 16mm w. connecting bolt M12 for 16-15

Order only

EAN: 4013364005365

MPN: 790150

Package: 1

Price (excl. VAT)

64,28 €

per unit

MOQ: 1

EDT to our warehouse: 1-4 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	Earth bushing with ring groove D 16mm w. connecting bolt M12 for 16-15
Brand	Dehn
Categories	Electrical Safety Equipment
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
ETIM	EC002790
Connection type	Other
Max. short circuit current	42 kA
For wire cross section	16-150 mm²

Packing details

Packing level 1

4013364005365, 4013364005365

Other Technical data

Application	Earth-side
Anti-rotation protection	Yes

Downloads

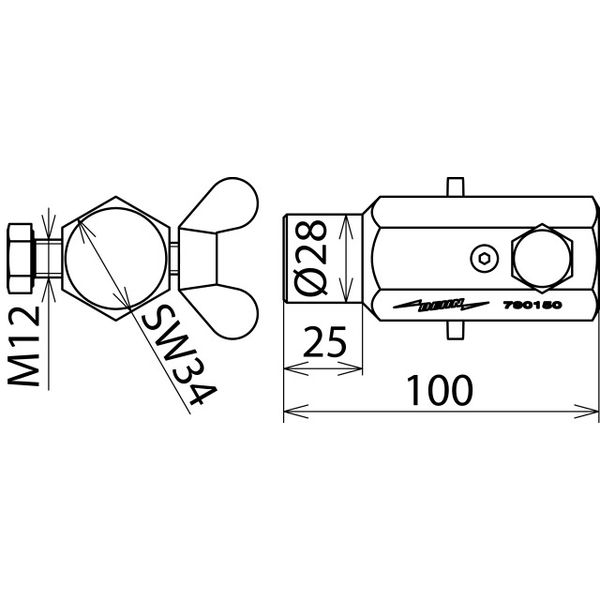

Product data sheet Dimensioned drawing Deep link REACH

Description

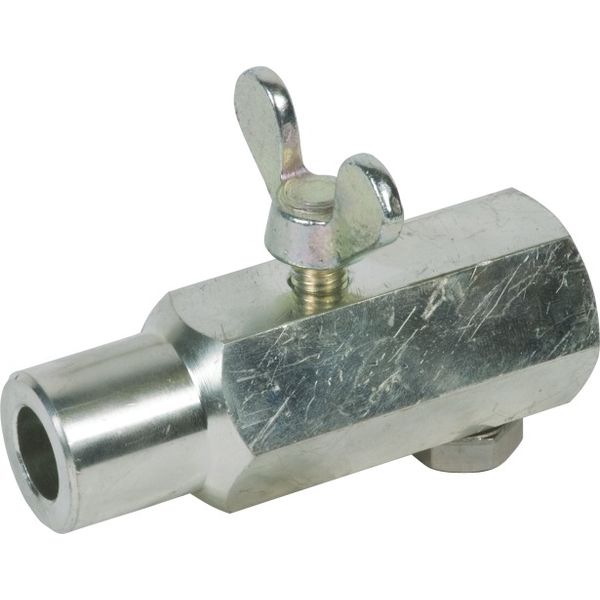

Earth bushing with wing bolt as connecting element in accordance with EN/IEC 61230 (DIN VDE 0683-100) for connecting the earth cable of earthing and short-circuiting cables to fixed earthing points with ring grroove D = 16 mm. With anti-rotation element type PK 1.
