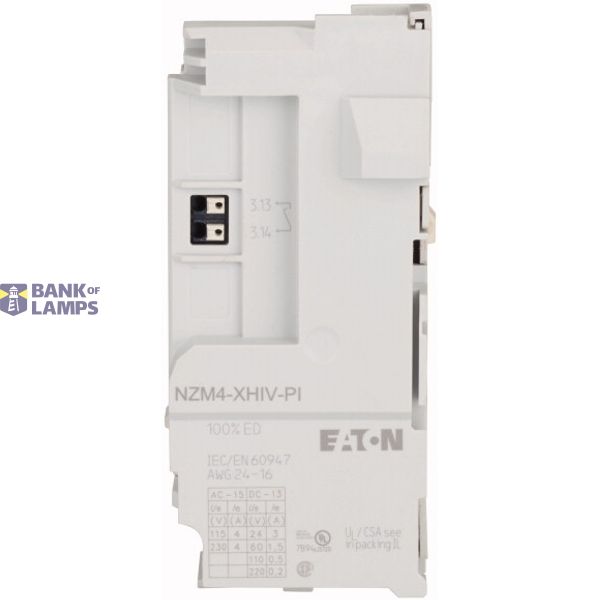

Early-make auxiliary contact for NZM4, 1NO, Push-in terminals image 1

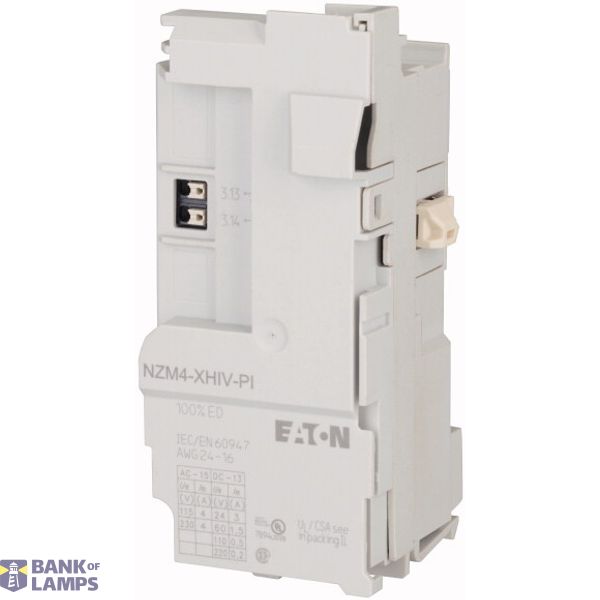

Early-make auxiliary contact for NZM4, 1NO, Push-in terminals image 2

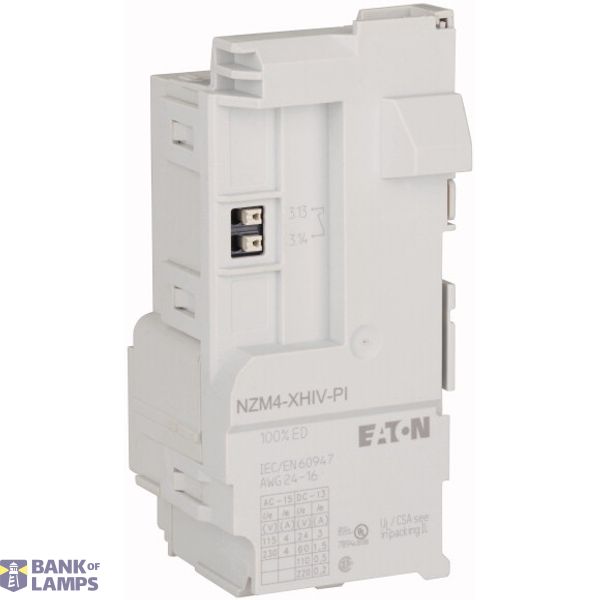

Early-make auxiliary contact for NZM4, 1NO, Push-in terminals image 3

Early-make auxiliary contact for NZM4, 1NO, Push-in terminals

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Early-make auxiliary contact for NZM4, 1NO, Push-in terminals
Brand	EATON
Country of origin*	RO
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
ETIM	EC000041
Mounting method	Other
Model	Integrable
Rated operation current Ie at AC-15, 230 V	4 A
Type of electric connection	Screw connection
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0

Packing details

Packing level 1

4015081877447

Other Technical data

Lamp holder

None

Description

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: Early-make auxiliary contact with push-in terminals. For interlocking and load shedding circuits, as well as for early make of the undervoltage release in main switch/emergency off applications. Not in conjunction with undervoltage release NZM…-XU…, shunt release NZM…-XA…, relais modules NZM…-X2A… or remote operator NZM…-XR… Early make (manual operation): approx. 20 ms (NZM2/3) and 90 ms (NZM4).
