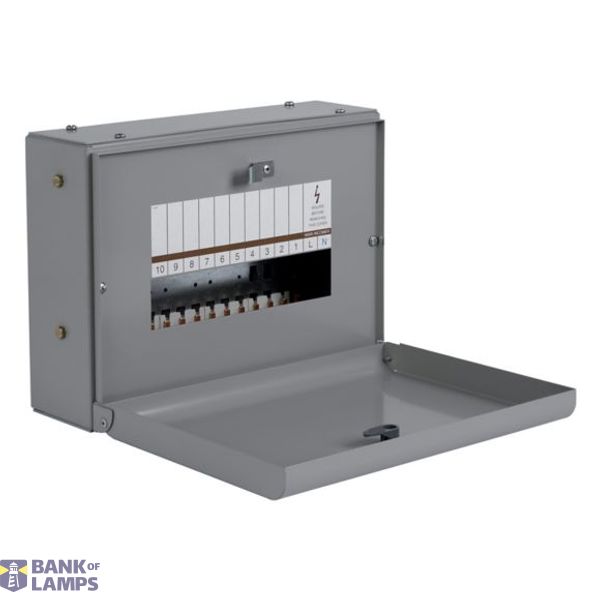

EAM16 Eaton Memshield 3 MCB Distribution Board small distribution board
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | EAM16 Eaton Memshield 3 MCB Distribution Board small distribution board |
| Brand | EATON |
| Country of origin* | RO |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8538 1000 00 |
| ETIM | EC000214 |
| Mounting method | Surface mounted (plaster) |
| Housing material | Steel |
| Degree of protection (IP) | IP3X |
| Cover model | Closed |
| Signal passing door | No |
Packing details
| Packing level 1 | 5019586158062 |
Other Technical data
| Colour | Grey |
| Width | 454 mm |
| Height | 254 mm |
| Depth | 130 mm |
| RAL-number | 7004 |
| With mounting plate | No |
| Built-in depth | 130 mm |
| Number of rows | 1 |
| Built-in height | 254 mm |
| Type of cover | Door |
| Built-in width | 454 mm |
| EMC-version | Yes |
| Extension possible | Yes |
| Inner depth | 95 mm |
| DIN-rail | Yes |
| Width in number of modular spacings | 18 |
| Type of closure | Other |
| Transparent cover/door | No |
| With lock | No |
| Earthing terminal block | Yes |
| Neutral terminal block | Yes |
Description
16 way SPN, type A distribution board 125A
