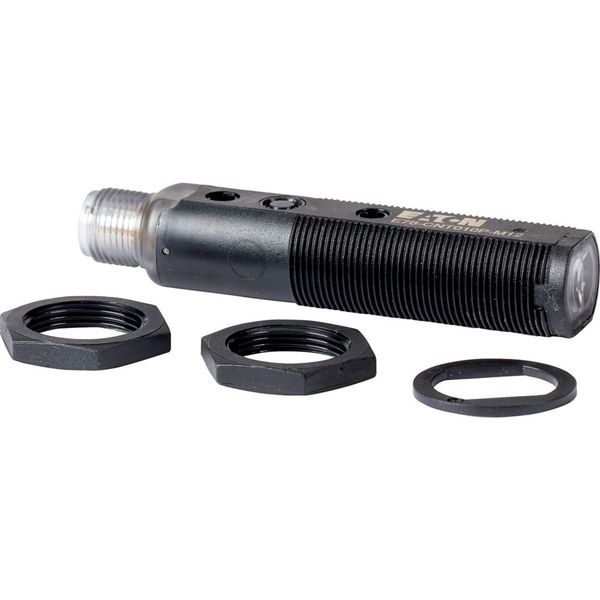

E76-CNT010N-M12 Sensor, contrast, M18, Sn=10mm, 10-30VDC, NPN, M12
Order only
Price (excl. VAT):
153,99 €
EAN: 4015081643059
MPN: 166929
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | E76-CNT010N-M12 Sensor, contrast, M18, Sn=10mm, 10-30VDC, NPN, M12 |
| Brand | EATON |
| Categories |
Color Sensors
|
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Voltage type | DC |
| Max. output current | 100 mA |
| Lamp type | Other |
| Switching frequency | 2700 Hz |
| Type of electric connection | Plug-in connection |
| Type of switching output | NPN |
| Type of switch function | Programmable/configurable |
| No-load current | 0 mA |
| Type of light | White light |
| Light dot | 0 mm² |
| Nominal operating distance | 10 mm |
Packing details
| Packing level 1 | 4015081643059 |
Other Technical data
| Housing material | Plastic |
| Ambient temperature | -10-55 °C |
| With time function | No |
| Number of semiconductor outputs with signalling function | 0 |
| Number of contact energized outputs with signalling function | 0 |
| With blanking function | No |
| Operation agent-safety class | Safety class 2 |
| Setting procedure | Other |
| Type of frequency band of the receiving spectrum | Other |
| Construction type housing | Cylinder, screw-thread |
| Laser protection class | Other |
| With fibre optics connection | No |
| With exchange lens | No |
| Material of optical surface | Plastic |
| Material of cable sheath | Other |
| Material fibre optics core | Other |
| Degree of protection (IP) | IP67 |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
| AWG-number | 0 |
| Width sensor | 0 mm |
| Diameter sensor | 18 mm |
| Height of sensor | 0 mm |
| Length of sensor | 81.5 mm |
| Degree of protection (NEMA) | 4X |
Description
IntelliView Serie, product features: optical sensor, no entry, ideal for the detection of different colors or contrasts, 10mm sensing range, light and dark switching, easy commissioning
