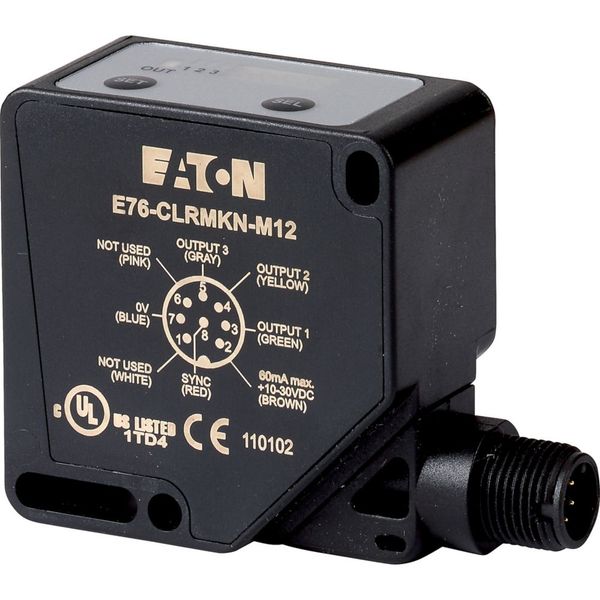

E76-CLRMKN-M12 Optical sensors, Reflected-light beam, Color sensing, 3 NO NPN outputs, 8 conductor, 10 - 30 V DC, Sn = 450 mm, Plug-in connection M12 x 1

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

1 156,66 €

This price is valid until 31.12.25

EAN: 4015081643097

MPN: 166926

Package: 1

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	E76-CLRMKN-M12 Optical sensors, Reflected-light beam, Color sensing, 3 NO NPN outputs, 8 conductor, 10 - 30 V DC, Sn = 450 mm, Plug-in connection M12 x 1
Brand	EATON
Categories	Color, Contrast & Distance Sensors
Country of origin	IT
Harmonized System Code	8536 5080 00
Voltage type	DC
Max. output current	100 mA
Lamp type	Other
Switching frequency	770 Hz
Type of electric connection	Connector M12
Type of switching output	NPN
Type of switch function	Normally open contact (NO)
No-load current	0 mA
Type of light	Infrared light
Light dot	0 mm²
Nominal operating distance	45 mm

Packing details

Packing level 1

4015081643097

Other Technical data

Housing material	Plastic
Ambient temperature	-10-55 °C
With time function	No
Number of semiconductor outputs with signalling function	3
Number of contact energized outputs with signalling function	0
With blanking function	No
Operation agent-safety class	Safety class 2
Setting procedure	Other
Type of frequency band of the receiving spectrum	Other
Construction type housing	Cuboid
Laser protection class	Class 2
With fibre optics connection	No
With exchange lens	No
Material of optical surface	Glass
Material of cable sheath	Other
Material fibre optics core	Other
Degree of protection (IP)	IP67
Analogue output 0 V ... 10 V	No
Analogue output 0 mA ... 20 mA	No
Analogue output -10 V ... +10 V	No
Analogue output 4 mA ... 20 mA	No
AWG-number	0
Width sensor	25 mm
Diameter sensor	0 mm
Height of sensor	50 mm
Length of sensor	50 mm
Degree of protection (NEMA)	4X

Description

IntelliView Serie, product features: optical sensor, no entry, programming for the detection of 3 different colors, 5-45 mm sensing range, rectangular plastic housing, integrated display, status LED, two programming buttons
