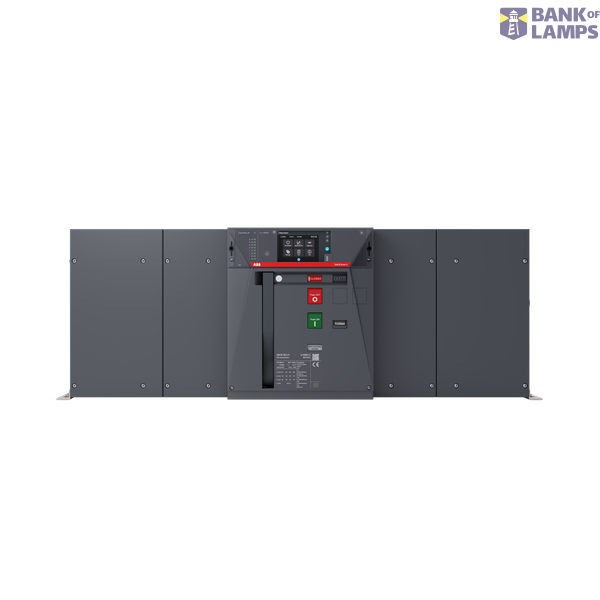

E6.3H/f 4000 Ekip Aware LSIG 4p F HR

Order only

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 8056221305402

MPN: 1SDA128911R1

Package: 1

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	E6.3H/f 4000 Ekip Aware LSIG 4p F HR
Brand	ABB
Categories	Power Circuit Breakers
Country of origin*	IT
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 2090 00
Rated permanent current Iu	4000 A
Number of poles	4
Rated voltage	690 V
Degree of protection (IP)	IP30
With switched-off indicator	Yes
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz	100 kA
Integrated earth fault protection	Yes
Device construction	Built-in device fixed built-in technique

Packing details

Packing level 1

8056221305402, 8056221305402

Other Technical data

Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
With integrated under voltage release	No
Overload release current setting	1600-4000 A
Number of auxiliary contacts as change-over contact	4
Position of connection for main current circuit	Back side
Motor drive integrated	No
Type of electrical connection of main circuit	Bolt connection
Type of control element	Push button
Adjustment range short-term delayed short-circuit release	2400-40000 A
Adjustment range undelayed short-circuit release	6000-60000 A
Suitable for DIN rail (top hat rail) mounting	No
Motor drive optional	Yes
DIN rail (top hat rail) mounting optional	No
Complete device with protection unit	Yes

Description

C.BREAKER SACE EMAX3 E6.3H/f 4000 FIXED FOUR-POLE FULL SIZE NEUTRAL WITH TERMINALS REAR HORIZONTAL AND SOLIDSTATE RELEASE IN AC EKIP/AWARE-LSIG R 4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
