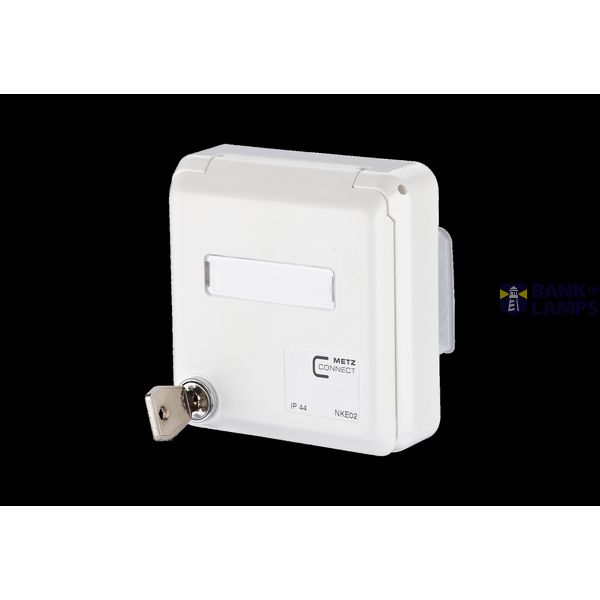

E-DAT modul IP44SG flush mounted housing pure white unequipped

Order only Not Available

Technical Information

Item condition	New
Manufacture name	E-DAT modul IP44SG flush mounted housing pure white unequipped
Brand	METZ CONNECT
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	3926 9097 00
ETIM	EC001264
Assembly arrangement	Basic element with full cover plate
Type of fastening	Screwing
Surface mounting	No
Degree of protection (IP)	IP44
Flush-mounted installation	Yes
Device width	90 mm

Packing details

Packing level 1	4250184117186
Packing level 2	4250184117186

Other Technical data

Colour	White
RAL-number	9010
Outlet direction	Inclined
Suitable for number of connectors	2
Duct installation	Yes
Shielded buses	No
Shielded housing	No
Separate strain relief	No
Separate earthing connection	No
Mechanical coding	No
Floor box/sub-floor mounted	No
With label space	Yes
With dust cover	Yes
Compatible with third-party covers	No
With terminal resistor	No
With buses/couplings	No
Colour coding	No
Device height	93 mm
Device depth	43.5 mm

Description

Lockable IP44 outlet, with two keys with lock with instantaneous locking action (identical locks and keys), cover closes completely, even when patch cables are plugged in, UP housing for sill duct installation, or in conjunction with the flush-mounted UP installation outlet, for two individual modules in Modul design, ball-throw proof according to DIN 18032, can be operated with standard patch cables, clearly visible nomenclature panel, variants: pure white, gray
