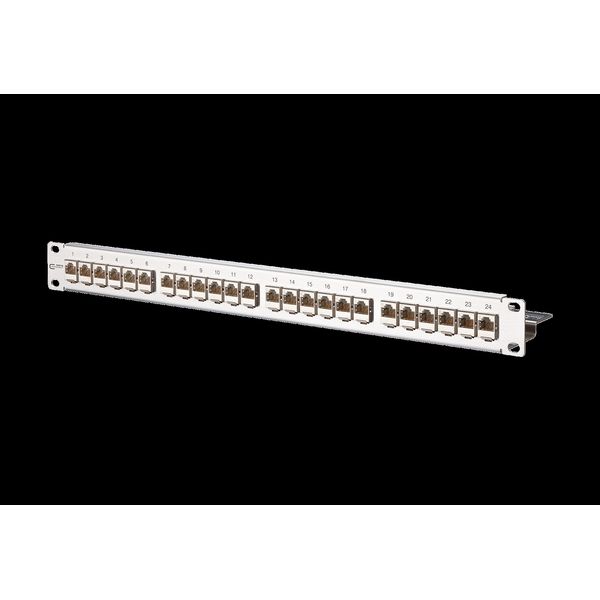

E-DAT modul 24x8(8) 1RU patch panel Cat.6A, stainless steel image 1
E-DAT modul 24x8(8) 1RU patch panel Cat.6A, stainless steel image 2
E-DAT modul 24x8(8) 1RU patch panel Cat.6A, stainless steel thumbnail 1
E-DAT modul 24x8(8) 1RU patch panel Cat.6A, stainless steel thumbnail 2
METZ CONNECT

E-DAT modul 24x8(8) 1RU patch panel Cat.6A, stainless steel

Order only
Price (excl. VAT):
201,38 €
This price is valid until 24.12.25
EAN: 4250184106166
MPN: 130921-E
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name E-DAT modul 24x8(8) 1RU patch panel Cat.6A, stainless steel
Brand METZ CONNECT
Categories Patch Panels and Data Connection Boxes
Country of origin DE
Harmonized System Code 8536 6990 00
Connection type Insulation displacement connector
Screened Yes
Suitable for number of connectors 24
Category 6A (IEC)
Type of connector RJ45 8(8)
Number of buses/couplings 24

Packing details

Packing level 1 4250184106166, 4250184106166

Other Technical data

Mounting method 482.6 mm (19 inch) mounting
Colour Silver
Width 482.6 mm
Height 43.6 mm
Depth 100 mm
Number of height units 1
Compatible with Grade2TV according to XP-C 90-483 No
Compatible with Grade3TV according to XP-C 90-483 No

Description

19 inch 1RU stainless steel module frame with 24 individual E-DAT modul modules, Cat.6, A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51compliance with class E, A according to ISO/IEC 11801, DIN EN 50173-1tested: Link to 500 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, easy to install connection of 2 to 4-pair data lines AWG 26/1 - 22/1 and stranded wires with 7 copper conductors AWG 26/7 - 22/7 to BTR 8-fold insulation displacement connectors (IDC), marking of conductor assignment to T568A and T568B, integrated cable support with optional strain relief, grounding bolt M6 x 10 with nut and lock washer, incl. 30 cm grounding cable, all fully shielded modules connected by means of grounding rail
