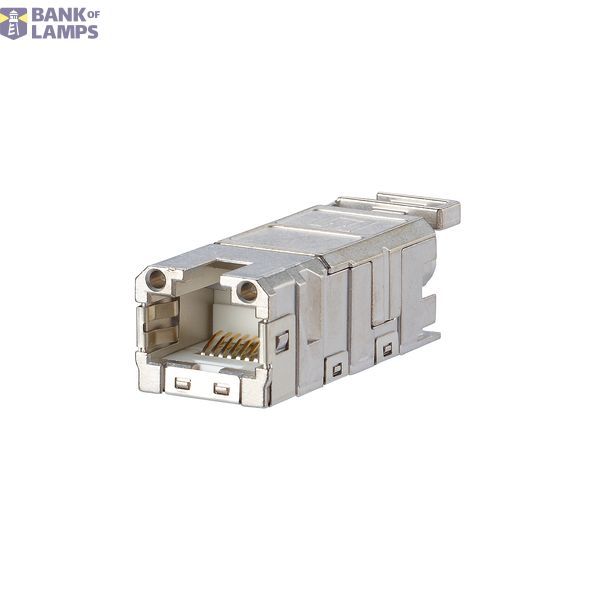

E-DAT Industry RJ45 field jack insert Cat.6 Class EA, T568A

Name: E-DAT Industry RJ45 field jack insert Cat.6 Class EA, T568A
Brand: METZ CONNECT
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	E-DAT Industry RJ45 field jack insert Cat.6 Class EA, T568A
Brand	METZ CONNECT
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
ETIM	EC001121
Model	Bus (jack)
Screened	Yes
Type of connector	RJ45 8(8)

Packing details

Packing level 1	4250184114277
Packing level 2	4250184114277

Other Technical data

Colour	Silver
Connection type	Insulation displacement connector
Category	6
Suitable for round cable	Yes
Suitable for flat cable	No
Suitable for litz wire conductor	Yes
Suitable for solid core	Yes
AWG-range	22-27
Transparent	No
Special tool necessary	Yes
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No

Description

RJ45 jack Cat.6 class E, A to be assembled in the field and mounted in IP67 flange housings of variants 1, 4, 5 and 14use for ingress protection IP65 in combination with Universal test jack, compliance with class E, A according to ISO/IEC 11801, DIN EN 50173-1suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE, 4PPoE) and HDBaseT, no special tools required, AWG 26/7 - 22/7, AWG 26/1 - 22/1 possible, no protruding contours, 2 x FS 2.8 mm grounding connection for equipotential bonding at cable end, increased resistance to vibrations and shocks due to 4 springs on the shield plates, consists of only 2 parts, easy to assemble, solid zinc die-cast housing, can be reconnected easily, variants: pin assignment to T568A, T568B or PROFINET
