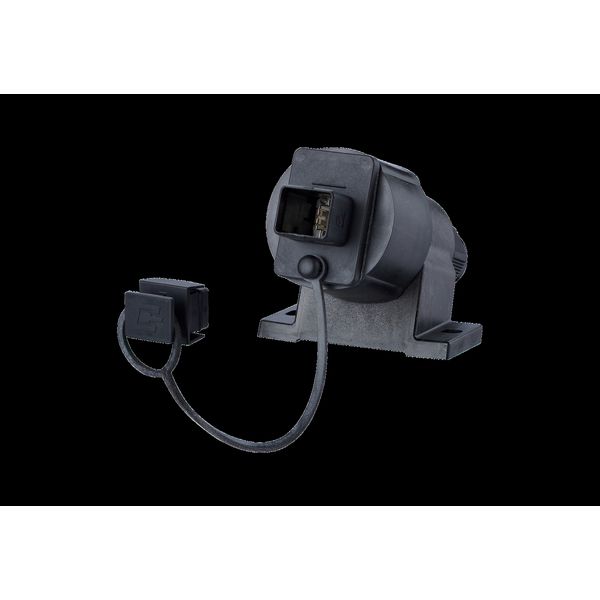

E-DAT Industry IP67 V4 surface mount housing + RJ45 field jack insert
In stock: No
Vendor stock: No
Minimal order quantity: 10
Price (excl. VAT):
42,65 €
Subtotal: 426,50 €
MOQ: 10
EAN: 4250184118411
MPN: 1401140012KE
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | E-DAT Industry IP67 V4 surface mount housing + RJ45 field jack insert |
| Brand | METZ CONNECT |
| Categories |
Patch Panels and Data Connection Boxes
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Connection type | Insulation displacement connector |
| Category | 6A (IEC) |
| Duct installation | No |
| Type of fastening | Screwing |
| Shielded buses | Yes |
| Shielded housing | No |
| Separate earthing connection | No |
| Type of connector | RJ45 8(8) |
| Floor box/sub-floor mounted | No |
| Surface mounting | Yes |
| Degree of protection (IP) | IP67 |
| Flush-mounted installation/built-in installation | No |
Packing details
| Packing level 1 | 4250184118411 |
| Packing level 2 | 4250184118411 |
Other Technical data
| Outlet direction | Straight |
| Suitable for number of connectors | 1 |
| Ambient temperature | -110 °C |
| Separate strain relief | No |
| Mounting method shielding connection | Other |
| Mechanical coding | Yes |
| With label space | No |
| With dust cover | Yes |
| With buses/couplings | Yes |
| Colour coding | Yes |
| Connector housing | IEC 61076-3-106 variant 4 |
| Material connector housing | Plastic |
Description
RJ45 termination unit in flange housing with push-pull-lock acc. to ISO/IEC 24702 and IEC 61076-3-106 standards, var. 4, compliance with class E, A according to ISO/IEC 11801, DIN EN 50173-1suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE) and HDBaseT, IP67 protected housing, AWG 26/7 - 22/7, AWG 26/1 - 22/1 possible, increased resistance to vibrations and shocks due to 4 springs on the shield plates, no special tools required, possible surface-mounting in series, connection of RJ45 plugs available on the market (no IP protection), easy, time-saving mounting
