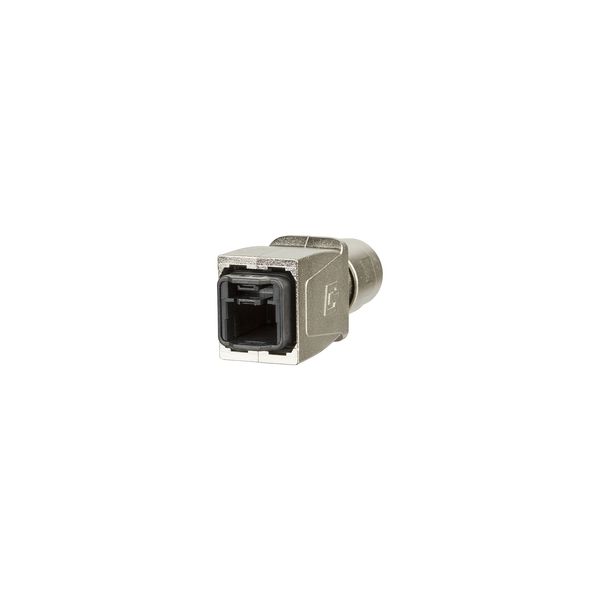

E-DAT Industry IP67 V14 plug housing for RJ45 unequipped
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | E-DAT Industry IP67 V14 plug housing for RJ45 unequipped |
| Brand | METZ CONNECT |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC000437 |
| Width | 22.3 mm |
| Height | 26.8 mm |
| Depth | 65.6 mm |
Packing details
| Packing level 1 | 4250184123590 |
| Packing level 2 | 4250184123590 |
Other Technical data
| UV resistant | No |
| With hinged lid | No |
| Colour housing | Other |
| Locking mechanism | Push Pull |
| Number of conduit inlets | 1 |
| With cable screw gland | No |
| EMC-version | No |
| Corrosion resistant | No |
| Housing material | Other |
| Coating housing | Tinned |
| Operating temperature | -110 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| With distance piece | No |
| Number of openings | 1 |
| With sealing | Yes |
| Type of housing | Plug case |
| Degree of protection (IP), mounted | IP67 |
| Position cable feed | Other |
| Mounting method of the cable gland | None |
Description
Plug housing with push-pull-lock acc. to ISO/IEC 24702 and IEC 61076-3-117 var. 14, IP67 protected housing to hold E-DAT Industry plug inserts, increased diameter range of 10 mm for connection of cable jackets, resistant to welding sputter, industry-compatible metal housing with improved durability, flammability class as per UL 94V-0, improved resistance to chemical substances, snap-on clip for color coding after assembly, cable can be pushed through preassembled plug housing, matching plug inserts E-DAT Industry RJ45 field plug insert, E-DAT Industry RJ45 plug insert, variants: plug housing, bend-protected plug housing
