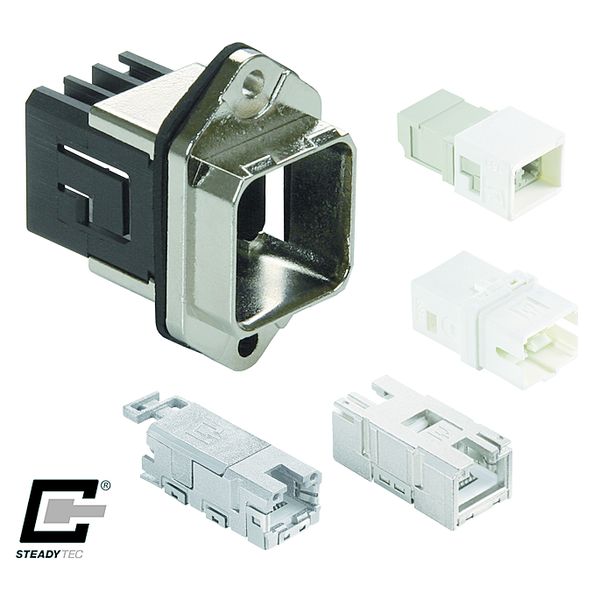

E-DAT Industry IP67 V14 mounting flange, normative mounting
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
6,98 €
EAN: 4250184123712
MPN: 14010833C0MN
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | E-DAT Industry IP67 V14 mounting flange, normative mounting |
| Brand | METZ CONNECT |
| Categories |
Industrial connections and blocks
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Width | 22.2 mm |
| UV resistant | No |
| Height | 42 mm |
| Depth | 34.7 mm |
| With hinged lid | No |
| Colour housing | Other |
| Locking mechanism | Push Pull |
| Number of conduit inlets | 1 |
| With cable screw gland | No |
| EMC-version | No |
| Corrosion resistant | No |
| Housing material | Other |
| Coating housing | Tinned |
| Operating temperature | -110 °C |
| Inflammability class of insulation material according to with UL94 | V0 |
| With distance piece | No |
| Number of openings | 1 |
| With sealing | Yes |
| Type of housing | Plug case |
| Degree of protection (IP), mounted | IP67 |
| Position cable feed | Other |
| Mounting method of the cable gland | None |
Packing details
| Packing level 1 | 4250184123712 |
| Packing level 2 | 4250184123712 |
Description
Flange with push-pull-lock acc. to ISO/IEC 24702 and IEC 61076-3-117 var. 14, IP67 protected housing for receiving E-DAT Industry flange inserts, easy to mount due to standard fastening by means of two screws (M3), not included in scope of delivery, mounting from the front, industry-compatible metal housing with improved durability, flammability class as per UL 94V-0, improved resistance to chemical substances, grounding possible on RJ45 insert using 2.8 mm contact pins, matching inserts: E-DAT Industry RJ45 field jack insert (T568A, T568B or Profinet), E-DAT Industry RJ45 coupler insert or E-DAT Industry USB coupler insert
