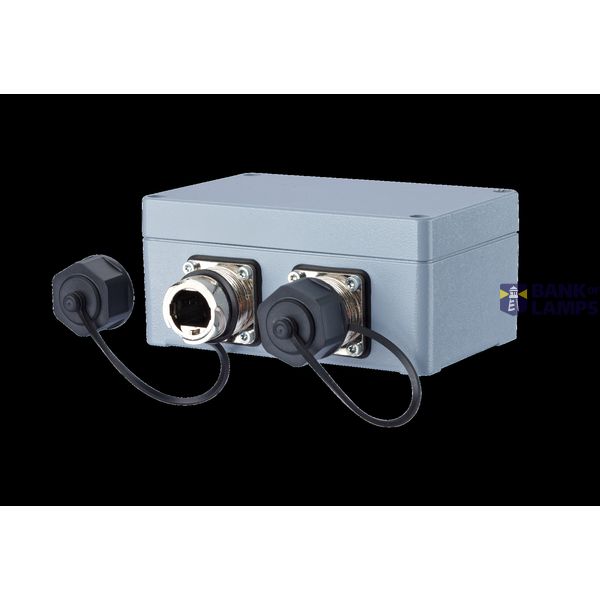

E-DAT Industry IP67 V1 2 port metal surface mount housing
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | E-DAT Industry IP67 V1 2 port metal surface mount housing |
| Brand | METZ CONNECT |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC002597 |
| Duct installation | No |
| Type of fastening | Screwing |
| Shielded buses | No |
| Shielded housing | No |
| Separate earthing connection | No |
| Floor box/sub-floor mounted | No |
| Surface mounting | Yes |
| Degree of protection (IP) | IP67 |
| Flush-mounted installation/built-in installation | No |
Packing details
| Packing level 1 | 4250184116479, 4250184116479 |
Other Technical data
| Outlet direction | Straight |
| Suitable for number of connectors | 2 |
| Separate strain relief | No |
| Mechanical coding | No |
| With label space | No |
| With dust cover | Yes |
| With buses/couplings | No |
| Colour coding | No |
| Connector housing | IEC 61076-3-106 variant 1 |
| Material connector housing | Metal |
Description
IP67 wall outlets for flexible connection of networks in industrial areas, 2 complete ports with flange covers and cable glands, with the output directions pointing straight downwards (with cable feed from above) or output direction to right (with cable feed from above), metal flange with bayonet to ISO/IEC 24702 and IEC 61076-3-106 standards, var. 1, unequipped, without inserts, for wall and floor mounting , aluminum housing made of AL-Si 12 , solid powder coating in RAL 7001 , dimensions, 2 ports: 124 x 78 x 57 mm (without flanges and cable glands), matching inserts: E-DAT Industry RJ45 field jack insert (T568A, T568B or Profinet), E-DAT Industry RJ45 coupler insert, E-DAT Industry USB coupler insert, OpDAT Industry SC-RJ/2SC coupler insert or OpDAT Industry LC-D coupler insert
