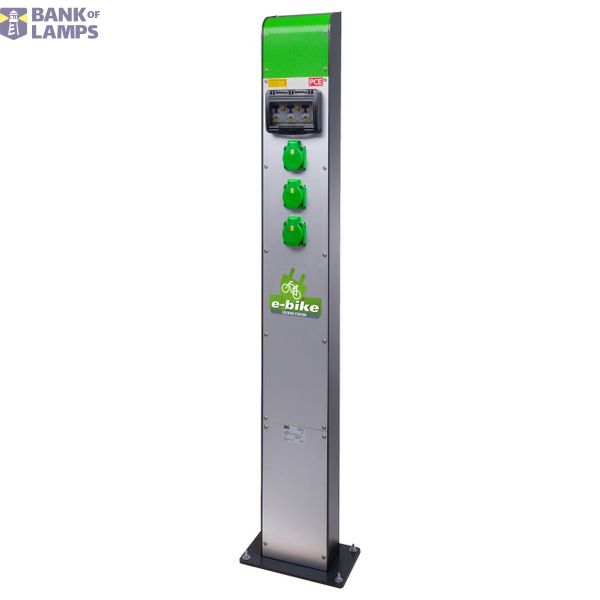

E-bike docking station pillar steel PILA 3-sockets

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	E-bike docking station pillar steel PILA 3-sockets
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Surface treatment contacts	Nickel-plated
Handling	Energy bollard
Contact material	CuZn
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399530968

Other Technical data

Colour	Grey
Width	165 mm
Height	1200 mm
Depth	85 mm
Number of socket outlets with protective contact (type F)	3
Protection	Overcurrent switch
Housing material	Steel
Earth leakage switch	Earth leakage switch with IFN 30 mA (standard)
Power supply/connection possibility	1 cable (branch line)
Number of miniature circuit breakers	3
Type of mains connection	Protective contact (type F)
Number of poles mains connection	3

Downloads

Product data sheet

Description

1x steel column 1200x165x85mm (HxWxD) RAL 7016 IP54
Front side aluminium sheets natural anodised - cover in green (similar RAL 6018)
Electrical range: Solid rubber distributor model STEYREGG IP54 430x79x129 (HxWxD)
1xM25 cable gland at the bottom (cable diameter 13-18mm PG21) black
3xSK-sockets 16A 250V IP54 (green)
protected with 3xRCB/MCB 6A 1p+N 30mA C TYP A
RCB/MCB are made by Eaton ÖVE / VDE
solid rubber distribution box is wired on Vario-Connector 5 poles 10qmm
