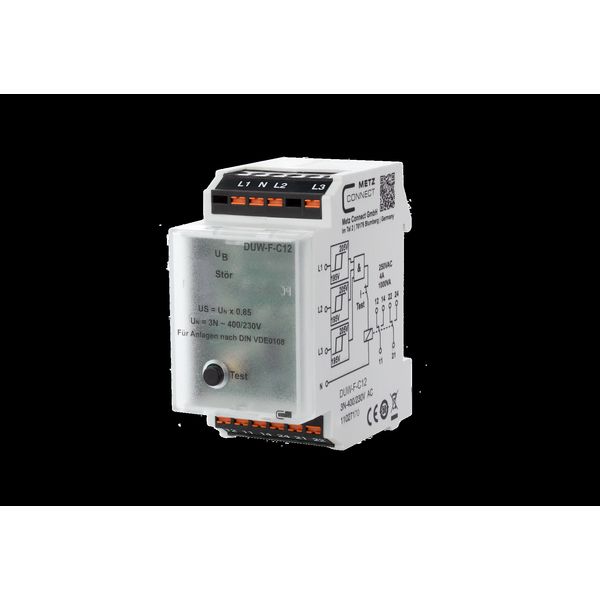

DUW-F-C12 image 2
DUW-F-C12 image 3
DUW-F-C12 thumbnail 1
DUW-F-C12 thumbnail 2
DUW-F-C12 thumbnail 3
METZ CONNECT

DUW-F-C12

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
32,50 €
This price is valid until 24.12.25
EAN: 4251394620473
MPN: 11027170
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name DUW-F-C12
Brand METZ CONNECT
Categories Monitoring Relays
Country of origin DE
Harmonized System Code 9030 3320 00
Voltage measuring range 400 V
Phase sequence monitoring No
Phase imbalance monitoring No
Type of electric connection Spring clamp connection

Packing details

Packing level 1 4251394620473, 4251394620473

Other Technical data

Width 35 mm
Height 70 mm
Depth 65 mm
With detachable clamps No
Phase failure detection Yes
Function under voltage detection Yes
Function over voltage detection No
Number of contacts as change-over contact 2

Description

Undervoltage monitor in three-phase mains (each phase against neutral) with fixed threshold value, fixed hysteresis and integrated testing key. It has been developed especially for emergency lighting to DIN VDE 0108. The device can also be used for monitoring an individual phase. All unoccupied inputs have to be connected to the connected phase. If there is an inverse voltage due to the consumer, which exceeds the adjusted threshold value, there is not any fault message. OK message: Relay is activated (contacts 11-14 and 21-24 closed), LED is off. Fault message: Relay is deactivated (contacts 11-14 and 21-24 open), LED is on. Key pressed: Relay is being deactivated (contacts 11-14 and 21-24 open), LED lights up.Connection with spring clamp terminal blocks (push-in)
