Duct detector housing, EBI-50

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Duct detector housing, EBI-50
Brand	Schneider Electric
ETIM	EC002648
Type of accessory/spare part	Other
Accessory	Yes
Spare part	No

Packing details

Packing level 1

3606481763976

Downloads

Technical manual Instructions for use Mounting instruction

Description

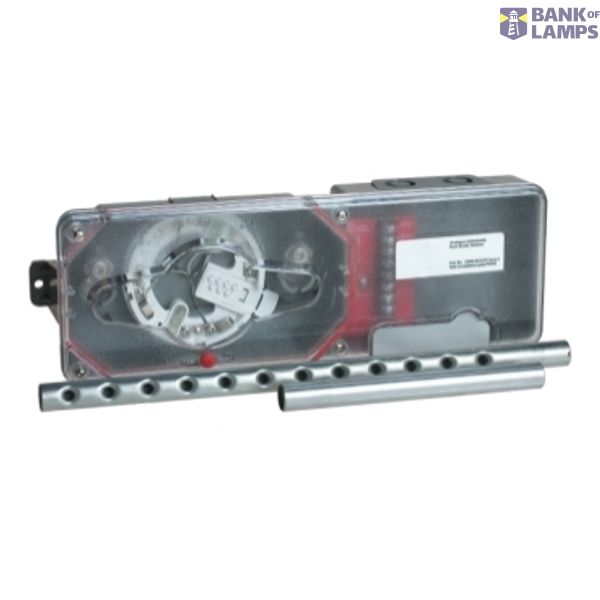

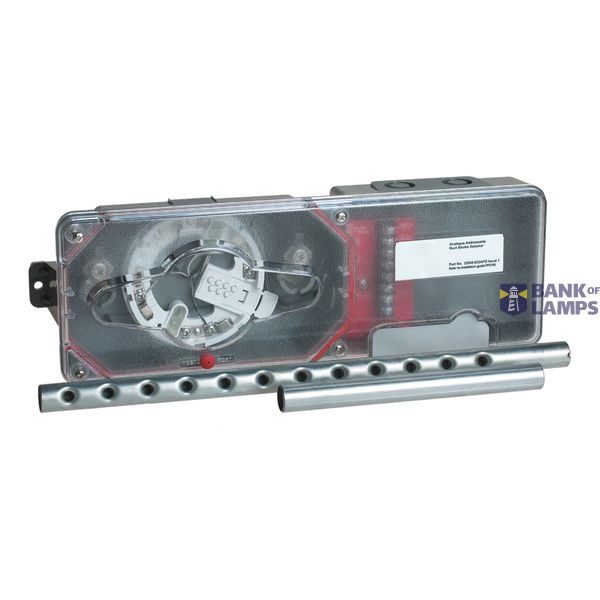

The Intellia addressable duct detector housing EBI-50 provides early detection of smoke in the air moving through heating and ventilation (HVAC) ducts in commercial and industrial premises. Its purpose is to prevent the recirculation of smoke from an area on fire to areas unaffected by the fire. The duct detector housing is designed to accept an Intellia intelligent detector head (EDI-20 optical smoke detector). The smoke detector is designed to operate in ducts with a width of between 300 mm and 3000 mm. A sampling tube of 360 mm, suitable for duct width up to 540 mm, is supplied as standard. Longer sampling tubes for wider ducts may be ordered separately.
