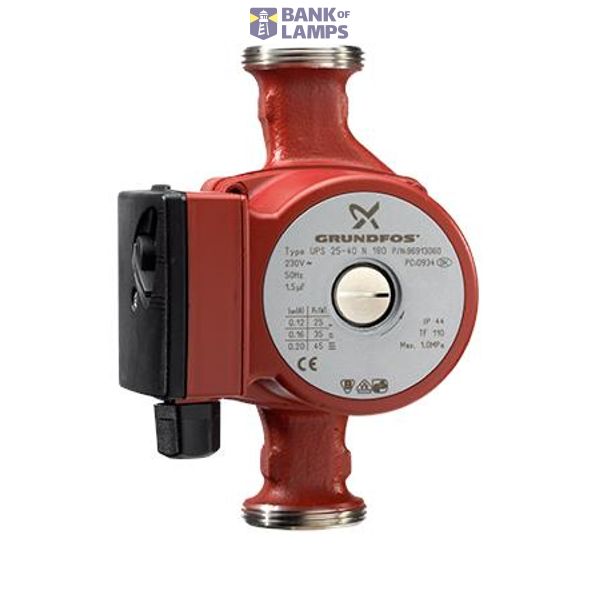

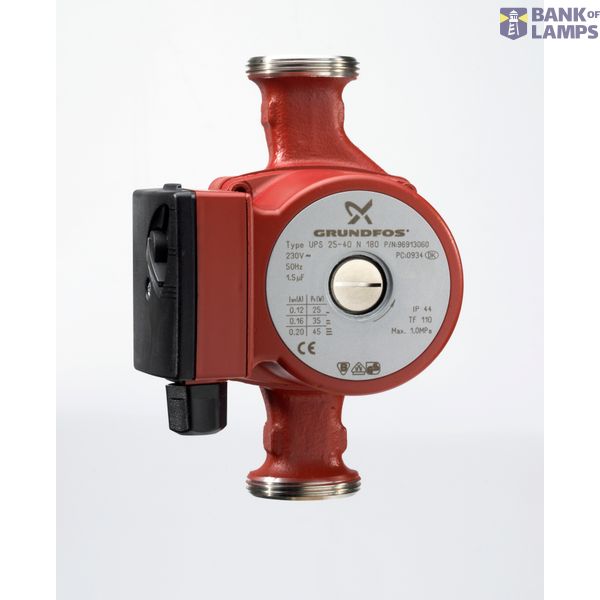

Circulator Pump Drinkwater UPS 25-40 N 180 1x230V 50Hz 9H
Order only
EAN: 5700313543083
MPN: 96913060
Package: 1
Price (excl. VAT)
343,45 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
Price valid until 24.12.26 or while in stock
Technical Information
| Item condition | New |
| Manufacture name | Drinkwater Circulator pump UPS 25-40 N 180 1x230V 50Hz 9H |
| Brand | GRUNDFOS |
| Categories |
Pump Systems & Units
|
| Country of origin* | SR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7030 00 |
| ETIM | EC010980 |
| Nominal current | 0.2 A |

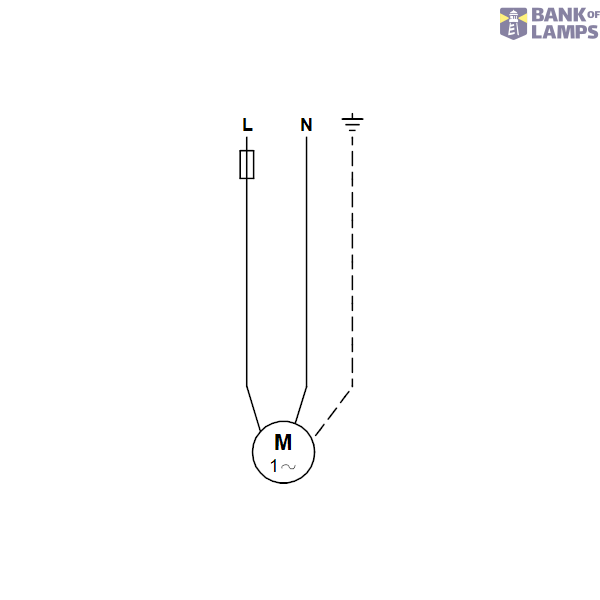

| Electrical connection | Terminals |
| Rated voltage | 230 V |
| Degree of protection (IP) | IP44 |
| Motor power input (P1) per motor | 0.045 kW |
| Volume flow rate (BEP) | 1.67 m³/h |
| Discharge head at flow rate (BEP) | 19.61 kPa |
| Material pump casing | Stainless steel |
Packing details
| Packing level 1 | 5700313543083, 5700313543083 |
Other Technical data
| Number of phases | 1 |
| Max. static height | 4 m |
| Flange shape | Other |
| Ambient temperature | 0 °C |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Potential free switch contact | No |

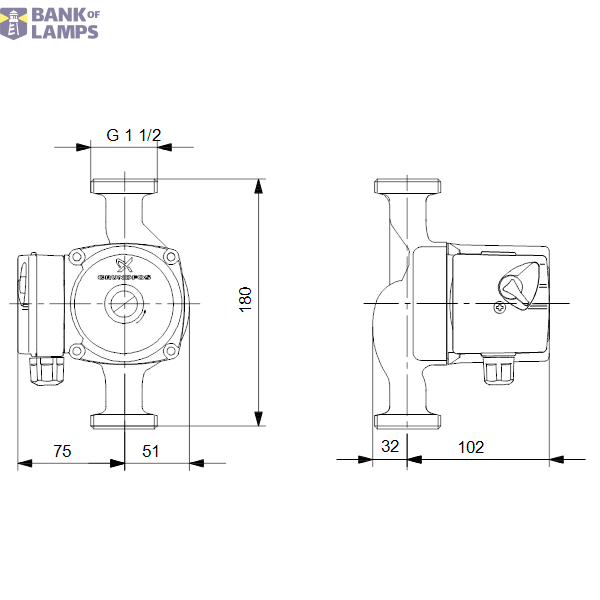

| Built-in length | 180 mm |
| Frequency | 50 Hz |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Other |
| Connection standard inlet side | ISO 228-1 |
| Connection standard outlet side | ISO 228-1 |
| Communication | None |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | No |
| Interface signal 0-20 mA / 4-20 mA | No |
| Interface PT100 / PT1000 / PTC | No |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | No |
| Supporting protocol for Modbus RTU | No |
| Supporting protocol for BACnet MS/TP | No |
| Supporting protocol for BACnet IP | No |
| Supporting protocol for LON/LONWorks | No |
| Supporting protocol for LIN Bus | No |
| Motor speed control | None |
| Max. operating pressure | 10 bar |
| Double pump | No |
| Insulation class according to IEC | F |
| Material quality pump casing | Stainless steel 304 (1.4308) |
| Medium temperature (continuous) | 2 °C |
| Material quality impeller/pump wheel | Other |
| Connection inlet side | External thread cylindrical BSPP-G (ISO 228-1) |
| Nominal diameter connection inlet side | 1 1/2 inch (40) |
| Nominal diameter connection outlet side | 1 1/2 inch (40) |
| Connection outlet side | External thread cylindrical BSPP-G (ISO 228-1) |
| Flange compression stage connection inlet side | PN 10 |
| Flange compression stage connection outlet side | PN 10 |
Downloads
Description
The pump is of the canned rotor type, i.e. pump
