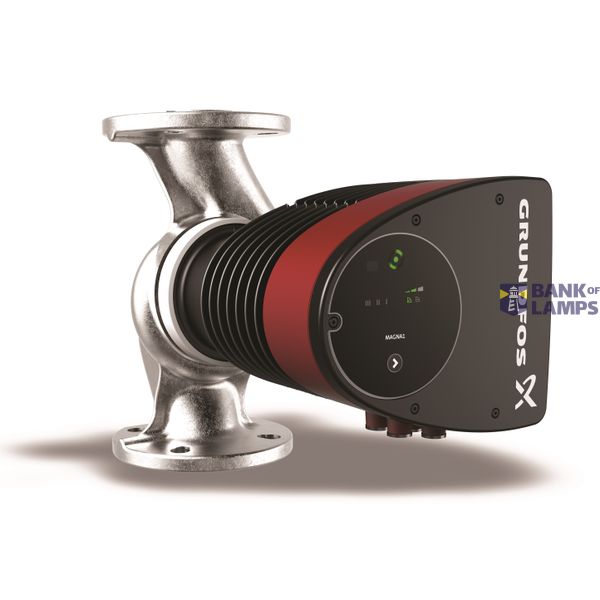

Drinking water Circulator pump MAGNA1 65-100 F N 340 1x230V PN6/10
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Drinking water Circulator pump MAGNA1 65-100 F N 340 1x230V PN6/10 |
| Brand | GRUNDFOS |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8413 7030 00 |
| ETIM | EC010980 |
| Nominal current | 2.73 A |
| Number of phases | 1 |
| Max. discharge flow | 40 m³/h |
| Max. static height | 10 m |
| Flange shape | Round |
| Rotational speed | 3566 1/min |
| Ambient temperature | 0 °C |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for KNX | No |
| Potential free switch contact | No |

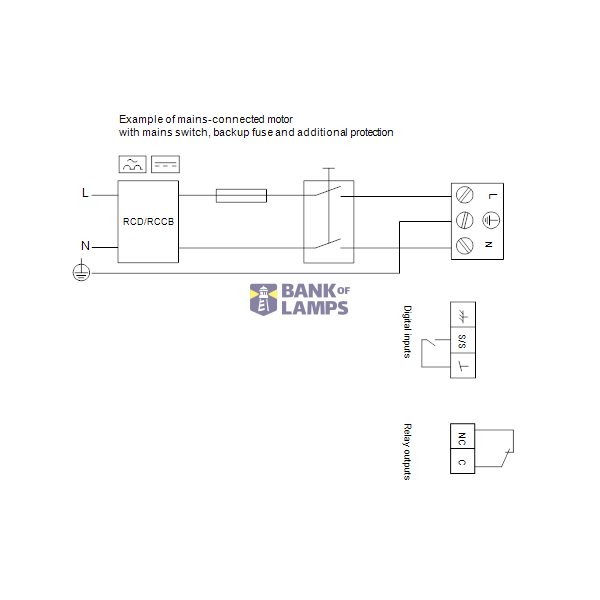

| Electrical connection | Terminals |
| Rated voltage | 230 V |

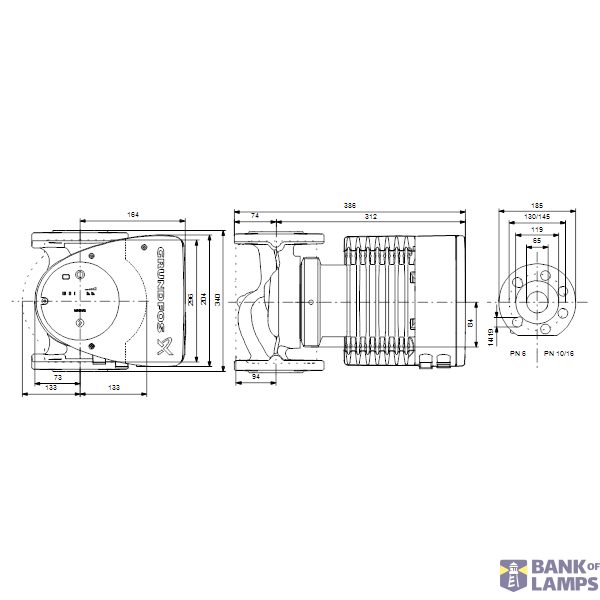

| Built-in length | 340 mm |
| Frequency | 50 Hz |
| Degree of protection (IP) | IPX4 |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| With communication interface RS-232 | No |
| With communication interface RS-485 | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for PROFINET IO | No |
| Material impeller/pump wheel | Other |
| Motor power input (P1) per motor | 0.619 kW |
| Volume flow rate (BEP) | 25.41 m³/h |
| Discharge head at flow rate (BEP) | 57.84 kPa |
| Connection standard inlet side | ISO 228-1 |
| Connection standard outlet side | ISO 228-1 |
| Communication | Built-in |
| Radio standard 2G / 3G / 4G | No |
| Radio standard 5G | No |
| Interface signal 0-10 V / 2-10 V | Yes |
| Interface signal 0-20 mA / 4-20 mA | Yes |
| Interface PT100 / PT1000 / PTC | No |
| Interface Pulse Width Modulation (PWM) | No |
| Interface pulse counter | No |
| Supporting protocol for CAN/CANOpen | No |
| Supporting protocol for Modbus TCP | No |
| Supporting protocol for Modbus RTU | No |
| Supporting protocol for BACnet MS/TP | No |
| Supporting protocol for BACnet IP | No |
| Supporting protocol for LON/LONWorks | No |
| Supporting protocol for LIN Bus | No |
| Radio standard 2G | No |
| Radio standard 3G | No |
| Radio standard 4G | No |
| Type of speed control | Continuously variable |
| Motor speed control | Built-in |
| Max. operating pressure | 10 bar |
| Material pump casing | Stainless steel |
| Pump circuit | Other |
| Double pump | No |
| Insulation class according to IEC | F |
| Material quality pump casing | Stainless steel 304 (1.4308) |
| Medium temperature (continuous) | -10 °C |
| Material quality impeller/pump wheel | Other |
| Connection inlet side | Flange |
| Nominal diameter connection inlet side | DN 65 |
| Nominal diameter connection outlet side | DN 65 |
| Connection outlet side | Flange |
| Energy Efficiency Index (EEI) | 0.2 |
| Flange compression stage connection inlet side | Other |
| Flange compression stage connection outlet side | Other |
Packing details
| Packing level 1 | 5712608943690, 5712608943690 |
Downloads
Description
The Grundfos MAGNA1 circulator pump is the simple option for a job well done.
