DRILLED VERTICAL FLAT BAR LINERGY BS 60X10 L1675

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

Price by request

This price is valid while stock lasts

EAN: 3303430045267

MPN: 04526

Package: 1

Pallet: 80

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	DRILLED VERTICAL FLAT BAR LINERGY BS 60X10 L1675
Brand	Schneider Electric
Categories	Busbar Systems and Accessories
Country of origin	IT
Harmonized System Code	7407 2900 00
Surface protection	Untreated
Rated current In	1400 A

Packing details

Packing level 1	3303430045267
Packing level 2	3303430045266

Other Technical data

Width	60 mm
Model	Flat
Height	10 mm
Flexible	No
Length	1675 mm

Downloads

ECOP (Environmental Code of Practice) Declaration EPD (Environmental Product Declaration) Technical manual Instructions for use

Description

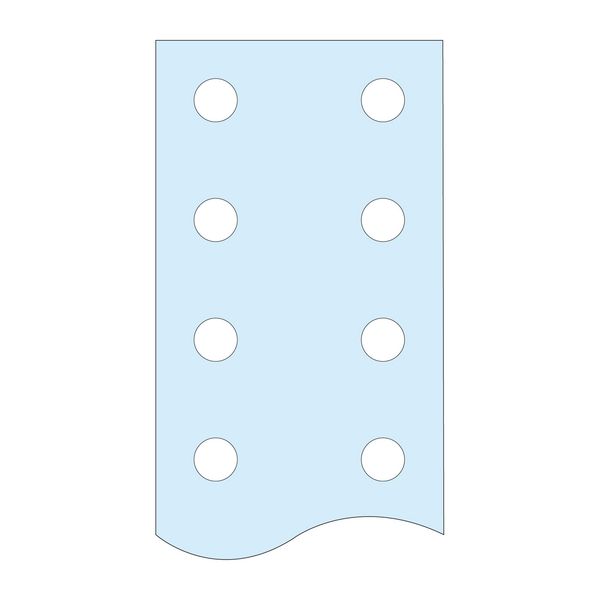

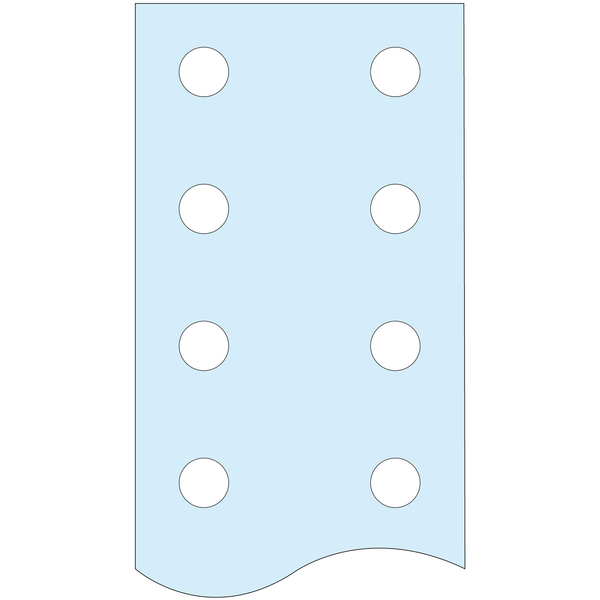

Linergy BS copper busbar for Prisma P. The rated operational current is 1400A at 35 °C. Busbar connection with Ø 10 mm drilled hole. It provides 60 x 10 mm busbar cross section and 1675 mm length. It could be installed in the 650 mm and 650 + 150 mm width cubicle. Its installation directions is vertical, rear and vertical operating position, lateral operating position. It provides 1400 A at 35 °C, = IP31 and 1250 A at 35 °C, IP31 permissible current. Sold in lots of 1 unit. It is certified by ASEFA. It is compliant with both IEC 61439-1 and IEC 61439-2. It is also compliant with Green Premium (RoHS/REACH).
