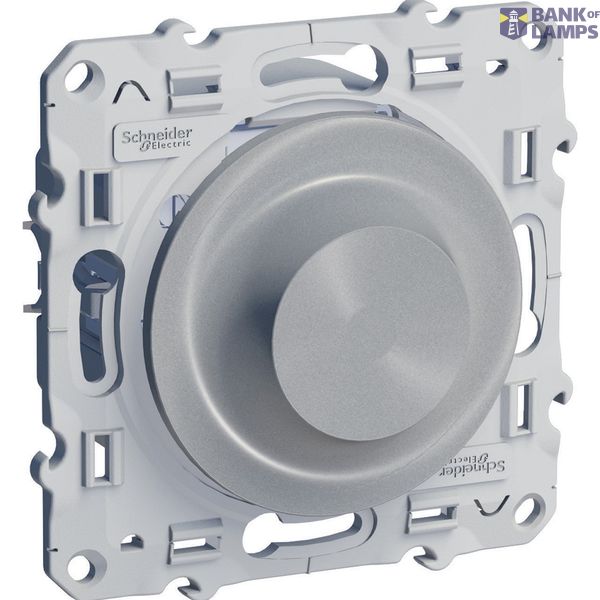

DRAAIDIMMER SPECIALE LAMPEN 9-100W, ALU
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | DRAAIDIMMER SPECIALE LAMPEN 9-100W, ALU |
| Brand | Schneider Electric |
| Country of origin* | EE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC000025 |
| Assembly arrangement | Basic element with central cover plate |
| Method of operation | Turn/push button |
| Frequency | 50 Hz |
| Type of load | Inductive load |
| Nominal voltage | 230 V |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 71 mm |
| Device height | 71 mm |
| Device depth | 49.5 mm |
| Max. switching power LED | 0 W |
Packing details
| Packing level 1 | 3606480391972 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Aluminium |
| Halogen free | Yes |
| Connection type | Screwed terminal |
| Surface protection | Lacquered |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Mounting with claw and screw |
| Light value memory | No |
| Substation input | Yes |
| RAL-number (similar) | 0 |
| Serial dimmer | No |
| Applicable with movement sensor | No |
| Applicable with transmission button | No |
| Applicable with infrared button | No |
| Applicable with presence indicator | No |
| Applicable with button | No |
| Applicable with time switch/timer | No |
| Impact strength | IK02 |
| Transparent | No |
| Surface finishing | Glossy |
| Core cross section | 1.5-2.5 mm² |
| Number of modules (module system) | 0 |
| Dimming phase cut-off | No |
| Dimming phase cut-on | Yes |
| Min. depth of built-in installation box | 40 mm |
| App control via Bluetooth | No |
Description
Schneider Electric Odace dimmer S530518 is a mechanism with fixing frame in color aluminium, whose dimmer type is for inductive load, resistive load. Its matching mounting box can be recessed into the surface of the wall with flush type. 230V is the rated operational voltage. It is 71 mm in width, 71 mm in height, 49.5 mm in depth, with an embedding depth of 29.3 mm. And the product weighs 0.093 kg. This is a 2-way dimmer. And the control type of this dimmer is rotary push type. The fixing mode of this device is by claws, by screws. What's more, it well satisfied the standard of 2004/108/EC, 2006/95/EEC, EN 60669-2-1. The IP rating of this device is IP20. Besides, it reaches IK02 protection level, which can help protect against impact. And it is mercury free. The Odace range of electrical fittings lets you equip your home with practical, ergonomic solutions for the ultimate in comfort, safety and connectivity.
