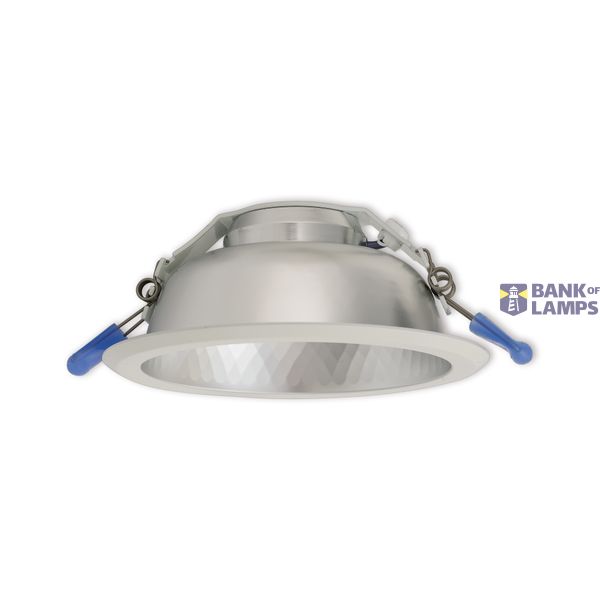

Downlight TIV150 IP44 15W/840
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Downlight TIV150 IP44 15W/840 |
| Brand | Ensto |
| ETIM | EC001744 |
| Width | 183 mm |
| Colour rendering index CRI | 80-89 |
| Length | 75 mm |
| Height/depth | 183 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK07 |
| Degree of protection (IP) | IP44 |
| Max. system power | 15 W |
| Rated luminous flux according to IEC 62722-2-1 | 1500 lm |
Packing details
| Packing level 1 | 6438389005547, 6438389005547 |
| Packing level 2 | 6438389005547 |
Other Technical data
| Protection class | II |
| Reflector | Matt |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Colour housing | Aluminium |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 15 W |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| With light source | Yes |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for surface mounting | No |
| Colour of light | White |
| Adjustability | Not adjustable |
| Type of wiring | Ending |
| Rated ambient temperature according to IEC62722-2-1 | -10-40 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Suitable for ceiling mounting | Yes |
Description
Tivoli is a cost-effective downlight series for public premises. Three different body sizes with faceted reflectors offer a classy result in every project.
