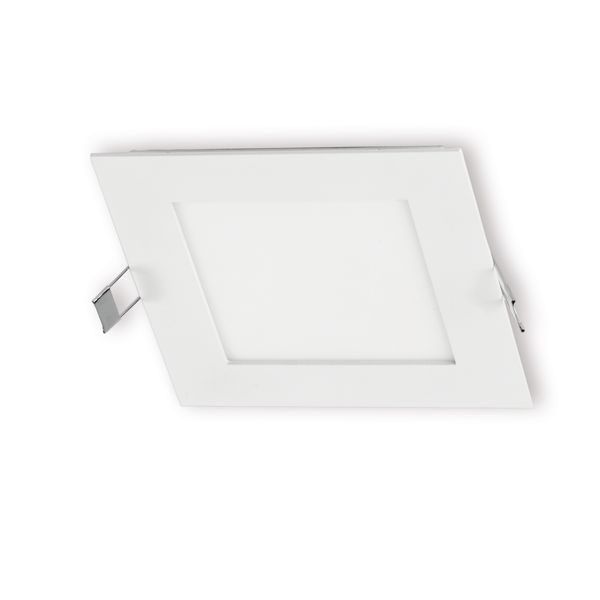

Downlight ALSD168NU IP44 14W 830/840 WH
Order only
Price (excl. VAT):
49,62 €
EAN: 6438389008135
MPN: ALSD168NU/DW
Package: 1
Pallet: 400
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Downlight ALSD168NU IP44 14W 830/840 WH |
| Brand | Ensto |
| Categories |
Recessed lights
|
| Width | 168 mm |
| Colour rendering index CRI | 80-89 |
| Length | 168 mm |
| Height/depth | 19 mm |
| Lamp type | LED not exchangeable |
| Degree of protection (IP) | IP44 |
| Beam angle | Open beam/diffuse |
| Max. system power | 14 W |
| Luminaire efficacy | 77 lm/W |
Packing details
| Packing level 1 | 6438389008135, 6438389008135 |
| Packing level 2 | 6438389008135 |
Other Technical data
| Protection class | II |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| Built-in width | 152 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Built-in length | 30 mm |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for surface mounting | No |
| Colour of light | White |
| Adjustability | Not adjustable |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Rated ambient temperature according to IEC62722-2-1 | -20-30 °C |
| Filament test according to IEC 60695-2-11 | None |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming depending on control gear | No |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 152 mm |
Description
Velox product family is designed to cover basic needs of lighting at home by LED-solutions. Velox LED-panels fit excellent for universal lighting at home both in new construction and renovations.
