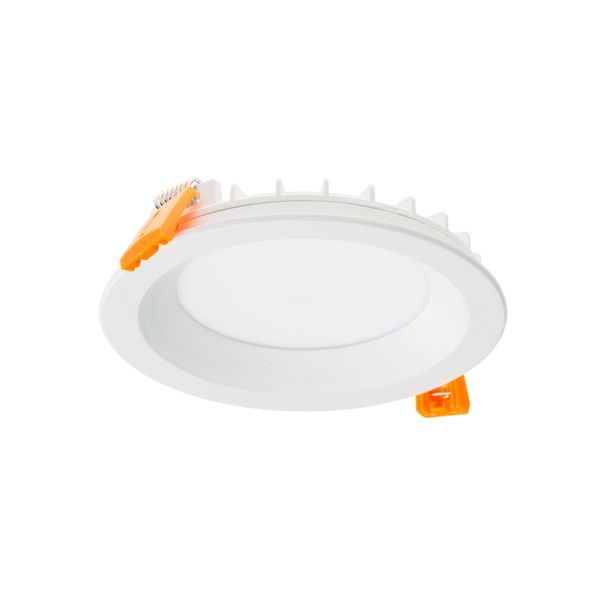

Downlight ALDD120PU/DW IP44 8W DALI VA
Order only
Price (excl. VAT):
83,97 €
EAN: 6438100388034
MPN: ALDD120PUED/DW
Package: 1
Pallet: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Downlight ALDD120PU/DW IP44 8W DALI VA |
| Brand | Ensto |
| Categories |
Recessed lights
|
| Colour rendering index CRI | 80-89 |
| Lamp type | LED not exchangeable |
| Degree of protection (IP) | IP44 |
| Beam angle | Open beam/diffuse |
| Max. system power | 8 W |
| Rated luminous flux according to IEC 62722-2-1 | 500 lm |
Packing details
| Packing level 1 | 6438100388034, 6438100388034, 6438100388034 |
Other Technical data
| Protection class | II |
| Outer diameter | 120 mm |
| Reflector | None |
| Lamp holder | None |
| Colour housing | White |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| With light source | Yes |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for surface mounting | No |
| Surface brushed | No |
| Colour of light | White |
| Adjustability | Not adjustable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Rated ambient temperature according to IEC62722-2-1 | -20-30 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.92 |
Description
The design of the Velox Deco series and the recessed light source provide a soft feel for basic lighting needs. Stylish and sophisticated accessories also provide surface- mounted solutions for homes and public spaces.
