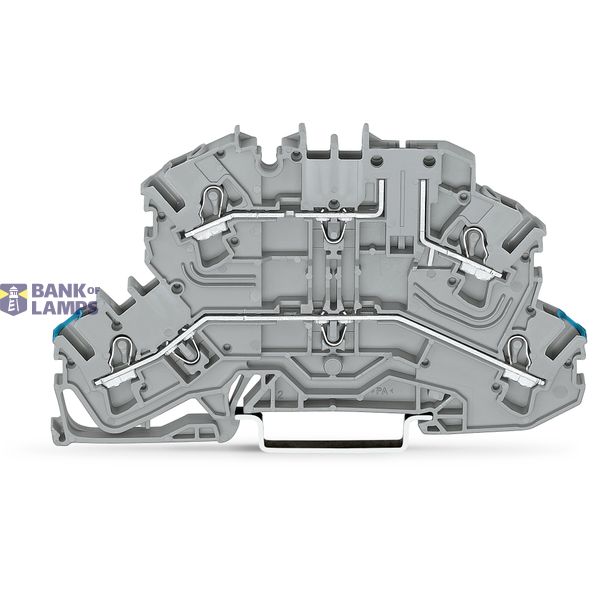

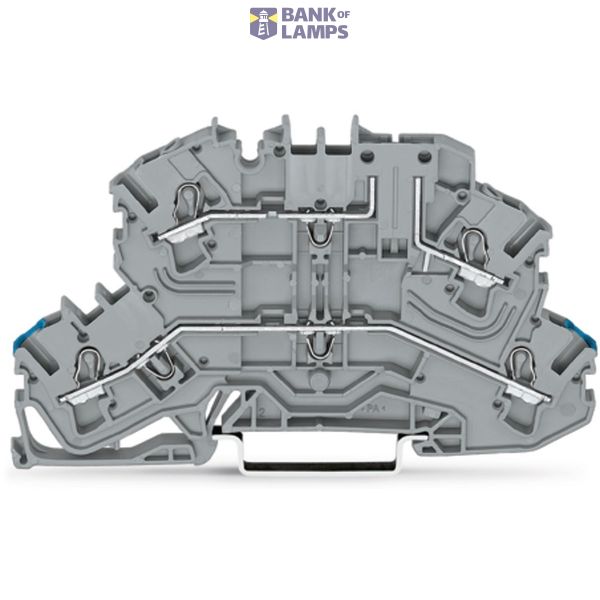

Double-deck carrier terminal block N/L upper-deck base gray

Name: Double-deck carrier terminal block N/L upper-deck base gray
Brand: WAGO
Availability: PreOrder

Order only Minimal order quantity: 50 Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Double-deck carrier terminal block N/L upper-deck base gray
Brand	WAGO
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
ETIM	EC000897
Mounting method	DIN rail (top hat rail) 35 mm
Rated voltage	400 V
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	2
Number of clamp positions per level	2
Connectable conductor cross section solid-core	0.75-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.75-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.25-4 mm²
Connectable conductor cross section multi-wired	0.25-2.5 mm²
Rated current In	16 A

Packing level 1

4050821403876

Colour	Grey
Width	5.2 mm
Height	93 mm
Depth	51.7 mm
Operating temperature	105 °C
Inflammability class of insulation material according to with UL94	V0
Closing plate required	No
Internally connected stages	FALSE
Material insulation body	Thermoplastic
Explosion-tested version 'Ex e'	No

Double-deck carrier terminal block N/L upper-deck base for DIN-rail 35 x 15 and 35 x 7.5 2.5 mm² Push-in CAGE CLAMP® 2,50 mm² gray
