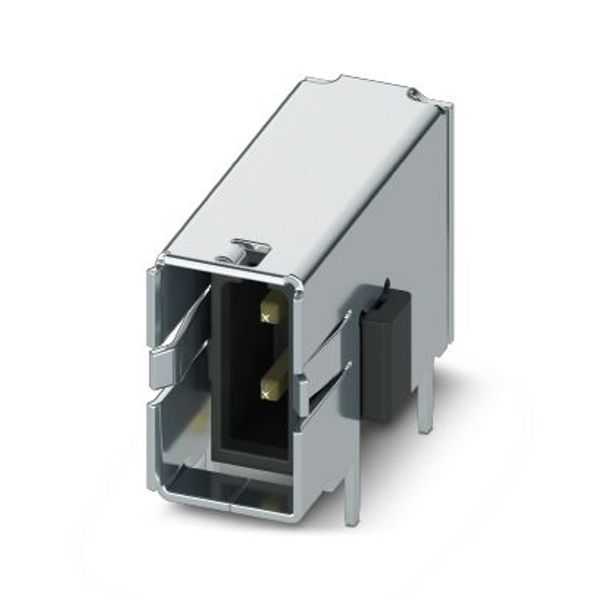

DMC 0,5/ 1-G1SHL-2,54P20THRR24 - PCB header

In stock: No Vendor stock: No Minimal order quantity: 300

Price (excl. VAT):

0,76 € per pcs

This price is valid until 24.12.25

Subtotal: 228,00 € MOQ: 300

EAN: 4063151146887

MPN: 1150801

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	DMC 0,5/ 1-G1SHL-2,54P20THRR24 - PCB header
Brand	Phoenix Contact
Categories	PCB Connectors & Terminals
Country of origin	PL
Harmonized System Code	8536 6930 00
Type of connection	Printed circuit board to cable
Rated voltage	160 V
Rated surge voltage	2.5 kV
Type of electric connection	Other
Connector model	Fixed connector
Angle PCB/contact	Other
Rated current In	5 A

Packing details

Packing level 1

4063151146887, 4063151146887

Other Technical data

Colour housing	Black
Contact type	Pin
Inflammability class of insulation material according to with UL94	V0
Material of contact surface	Gold
Over voltage category	III
Pollution degree	2
Modular spacing connections	2.54 mm
Type of banding	Other
Modular spacing contacts	2.54 mm
Material insulation body	Other
Type of PCB fastening	Other

Description

PCB headers, nominal cross section: 0.34 mm², color: black, nominal current: 5 A, rated voltage (III/2): 160 V, contact surface: Gold, type of contact: Pin, number of positions: 1, product range: DMC 0,5/..-G1SHL-THR, pitch: 2.54 mm, mounting: THR soldering, plug-in system: COMBICON DFMC 0,5 lock & shielded, Electrical properties: shielded, locking: shielded connection, type of packaging: 24 mm wide tape
